28' Offshore
Specifications
  • Length: 35’ Overall: 40’
  • Beam Bottom: 10’ Gunwale 12’
  • Bottom: 22° constant dead rise .250 5086 alloy
  • Exclusive Motion Marine drop chine design
  • Sides: 46” high .160 thick 5052 alloy with 30” full width swimdeck
  • Power: 3 Steyr 256 alum. block light weight diesels with Bravo 2 Mercury out drives || 3 stainless steel props.
  • center engine is forward of port & starboard engines & runs a jackshaft to out drive
  • Steyr’s exclusive IFG charging unit built into the flywheel--produces 5 KW charging current for the house batteries.
  • engines controlled by a Glendenning fly by wire system
  • 3 station control units with all engine synchronization
    • -----------------------------------------------------
  • power assist hydraulic steering
  • 375 gal fuel tank with recirculating Racor cleaning system
  • 3 Separ fuel/water separators and Steyr final filters
  • all engines plus genset are hooked to a manifold oil change pump for easy engine oil evacuation
  • fuel tank and Separ fuel filters are hooked to a manifold and clean out pump for easy cleaning
  • 50 gal fresh water tank with filtered pressurized water system
  • 6 gal Vetus hot water tank with engine heat coils
  • 30 gal head holding tank w/ machator overboard & dock pump out
  • Vetus push button large bowl head
  • one piece fiberglass 3’x4’ shower enclosure w/ stainless grab rails
  • Corian inlayed counters and tables
  • cherry wood custom interior and cabinets
  • all upholstery and dash covers || full grain leather
  • removable bound Berber carpets
  • full foam filled floors for noise control sealed with asphalt emulsion and urethane caulking
  • Thinsolite insulation under marine carpet on walls & ceiling in vee births
  • all seating areas convert into beds
  • Simrad Electronics: 15” Monitor CX54 Radar/Sonar/GPS Combo in main || 10” DS44 Radar/Sonar/GPS in flybridge || 6” DS33 at back console || 6" EQ33 near bulkhead
  • AP25 Autopilot in main station || AP26 Autopilot remote in flybridge || AP27 Autopilot handheld at rear deck
  • RS86 radio in main station
  • RS87 radio in flybridge & rear deck
  • all ABYC code Ancor wiring with Blue Sea switching and breaker panels
  • 3 x 120V heaters on separate circuit and breaker panel
  • Heaters in main salon, flybridge, and engine compartments
  • large output 510 Esbar hot water boiler system
  • 2 heater & defroster in main salon || hot water heat exchanger in hot water heater and flybridge heater

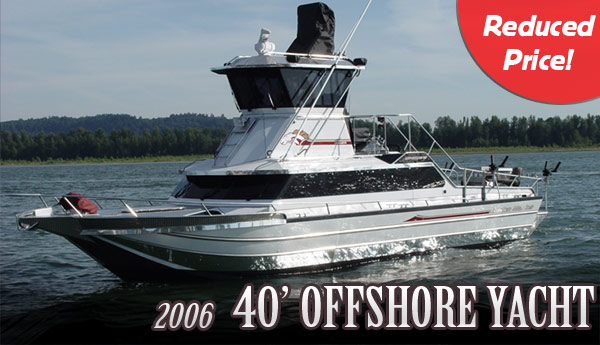

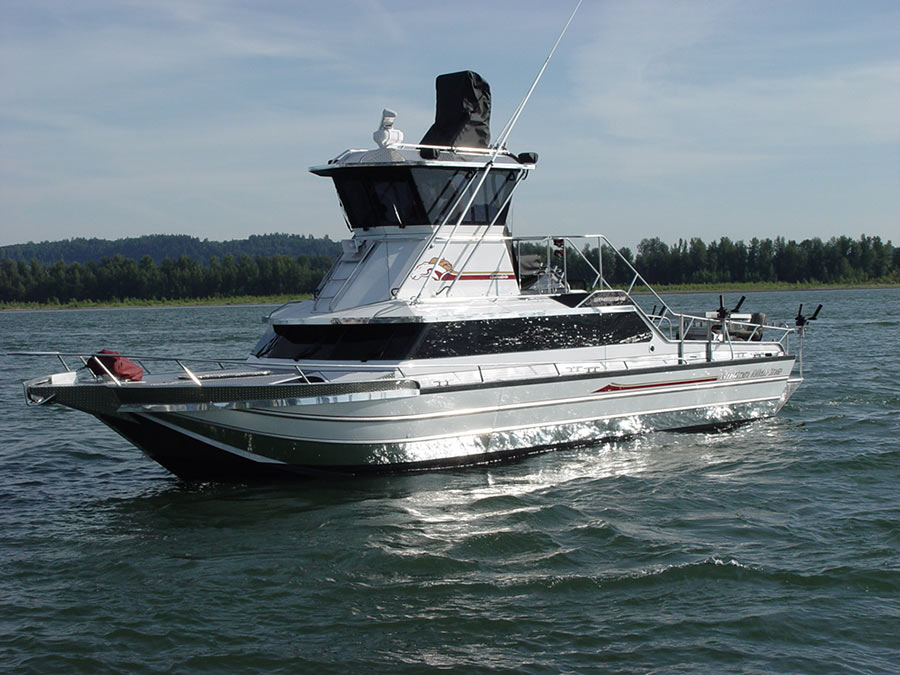

This State of the art custom yacht was built by owners of Motion Marine to show case new technology in the welded aluminum boats world. Debuted in the 2006 Portland Boat Show and shown around the northwest, it has been time tested to be the ultimate sports & luxury combo yacht. Added to all its top tier technology and maximization of space & storage, it is an easily towable package. Yes, a trailable 40’ custom yacht with a flybridge—a custom bridge folds down on pivoting arms and stores onto the front deck with no wires to unhook. A custom welded triple axle trailer with all wheel disc brakes and electric over hydraulics controls. It is powered by 3 Steyr 256 HP light weight diesels--only 750 lbs each. Also, with Bravo II out drives controlled with 3 station Glendenning fly by wire controls and power assisted hydraulic steering--this vessel drives like a dream.
Call for Best Price
Photo Tour:
Dimensions

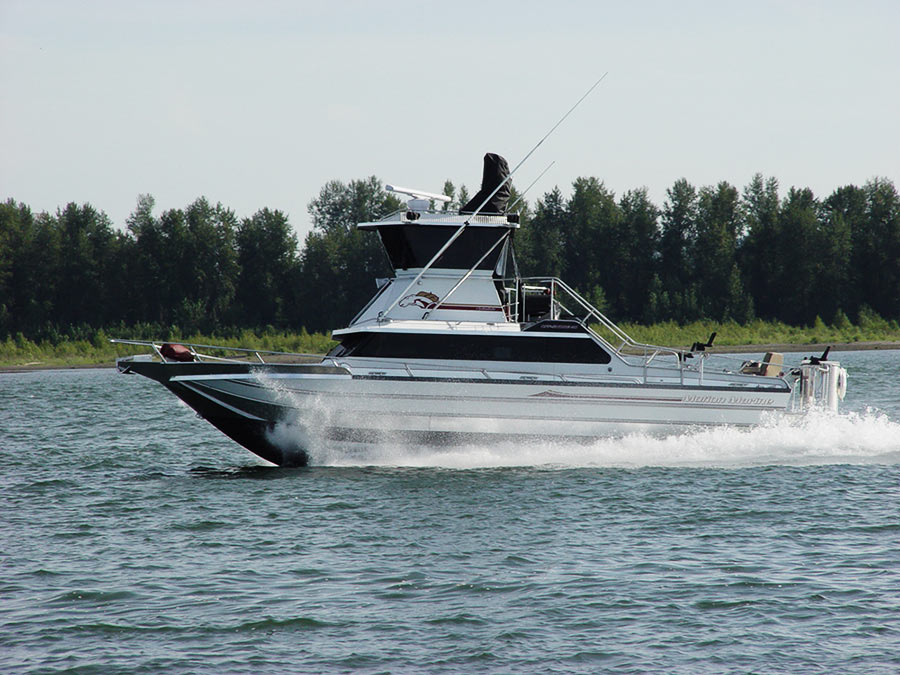

30+ MPH cruise || 38 MPH top speed
 Dimensions
15 GPH @ 22 MPH
Dimensions

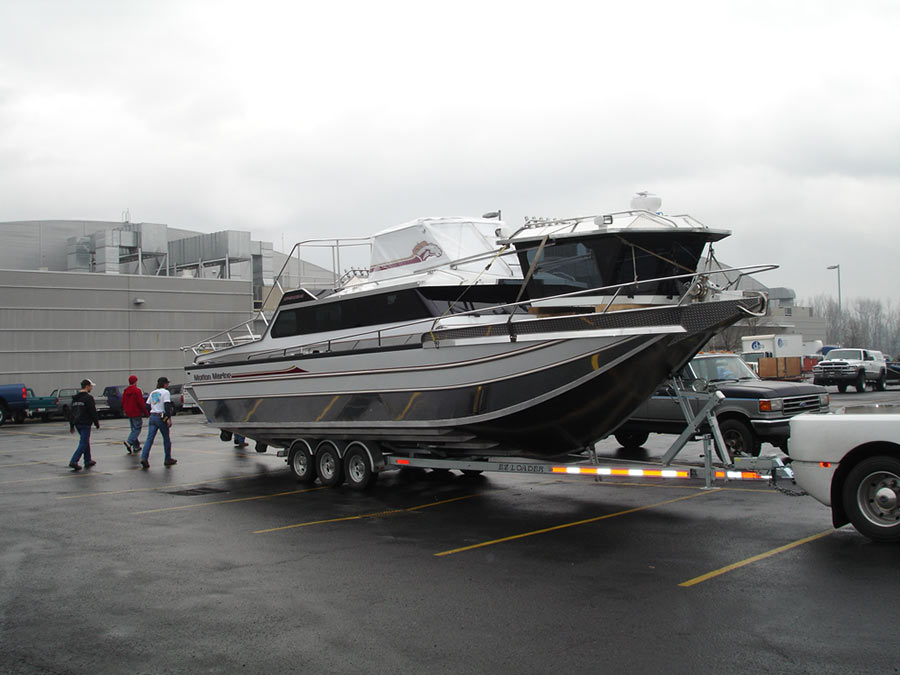

Towable configuration || triple axle custom trailer || 29,000 lbs total.
 Dimensions
3 Steyr 256 HP light weight engines
 Specs

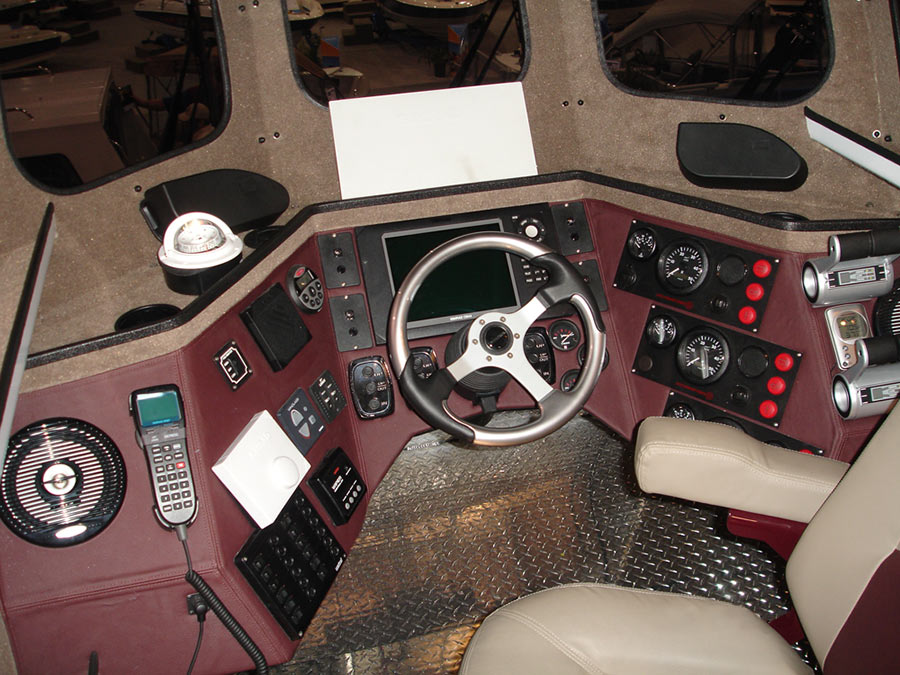

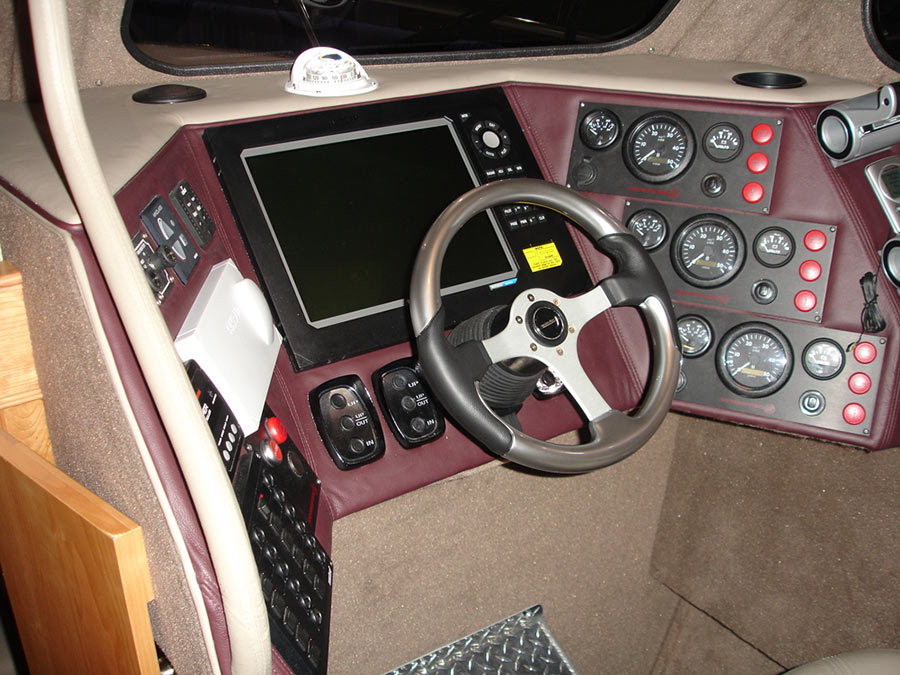

Wrap around cockpit style main station w/ Simrad 15" CX54 Radar/Sonar/GPS combo
 Power
Flybridge wrap around cockpit w/ Simrad DS44 10” Radar/Sonar/GPS combo
Specs

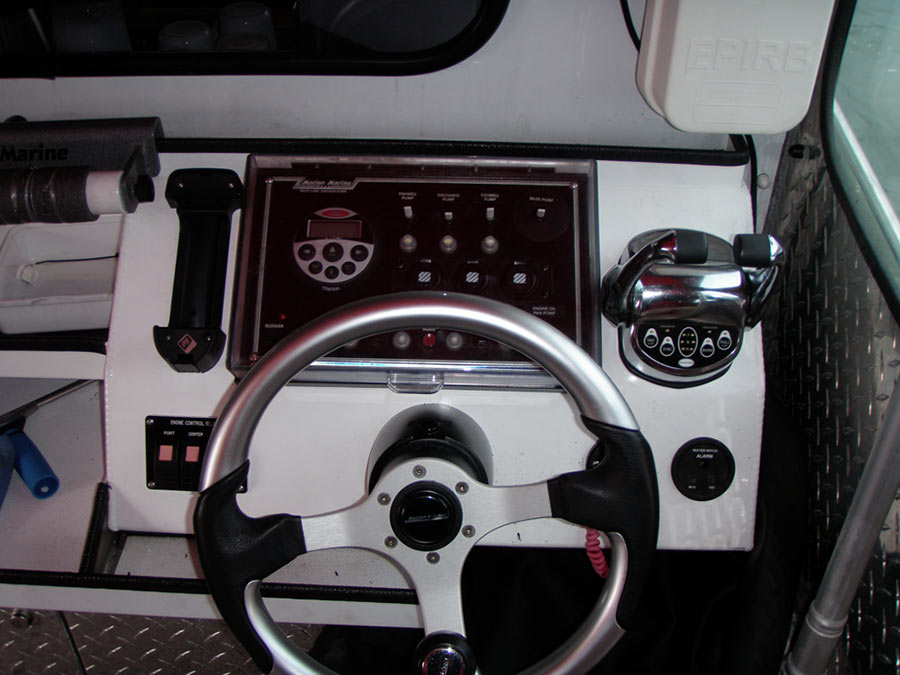

Rear deck control helm w/ covered dash speakers
 Specs
22,500 lbs wet
 Specs
Exclusive Motion Marine spray control
 Specs
live well w/ circulating pump & rigging station
 Specs

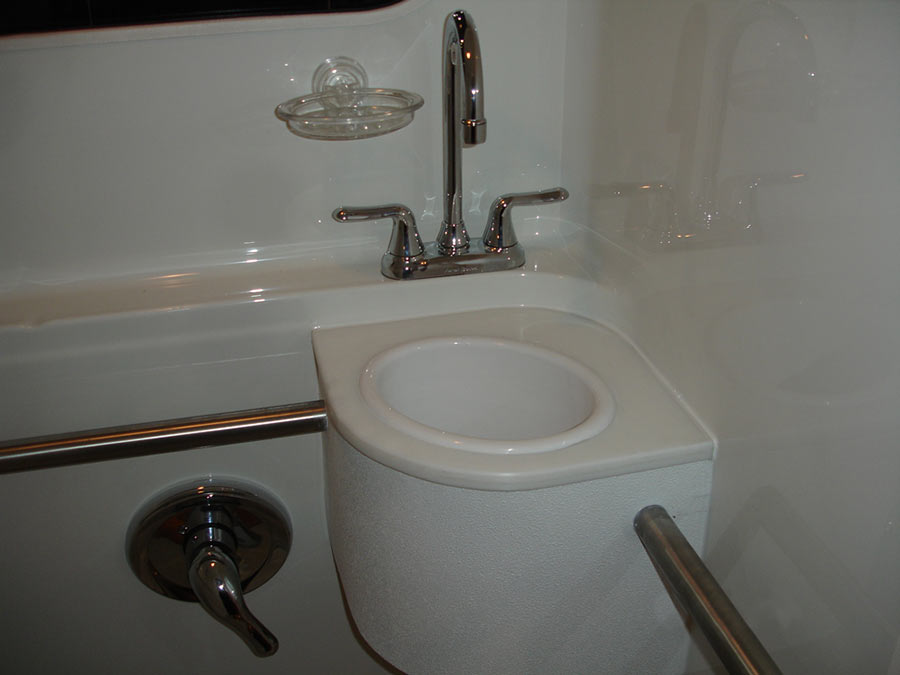

one piece fiberglass head w/ built in sink & shower
 Specs

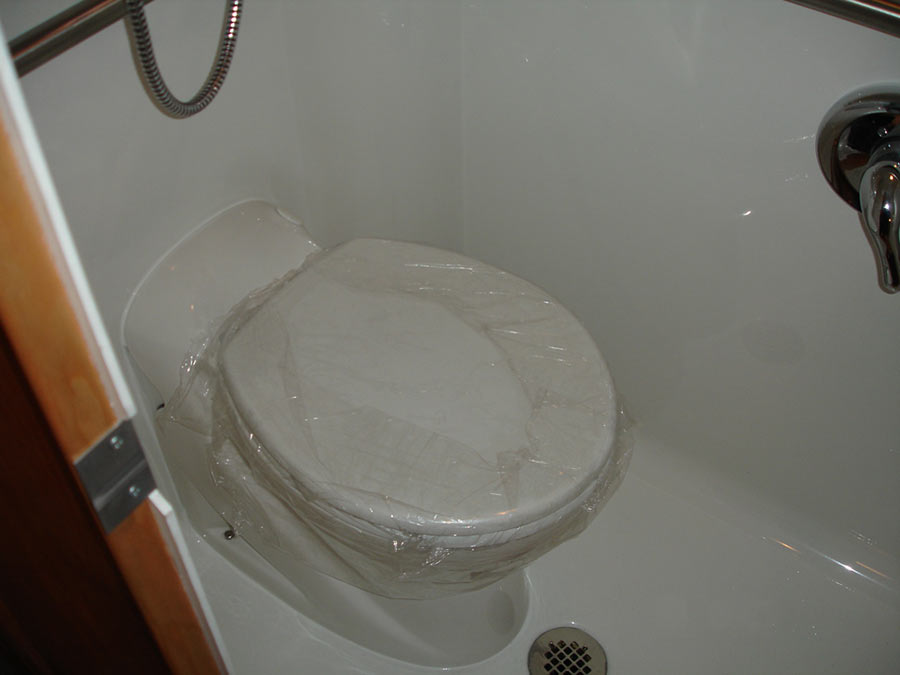

Vetus push button head
Specs

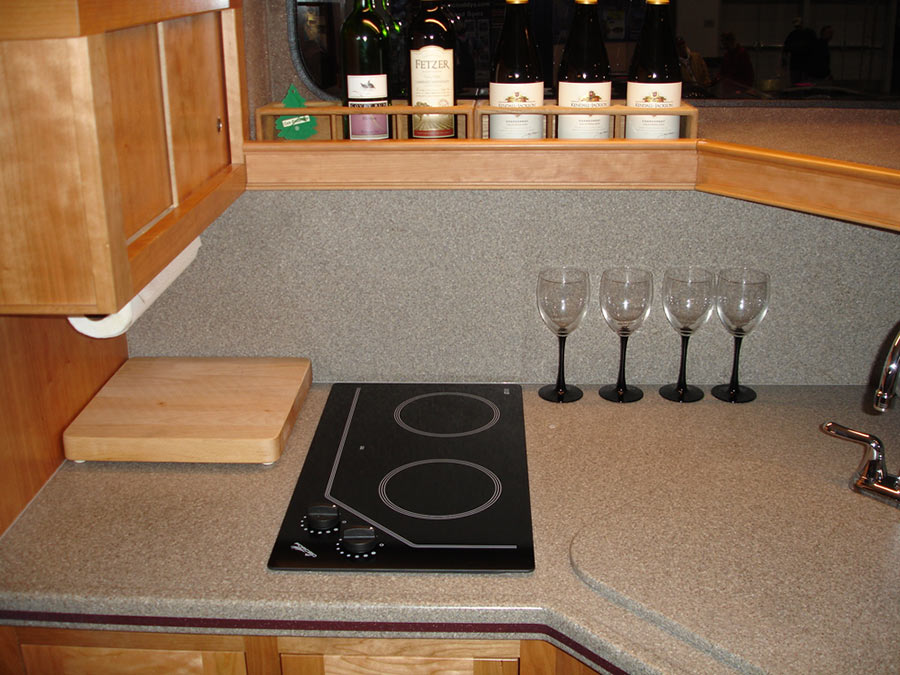

Corian counters w/ flush mount sink and glass top burners
 Specs

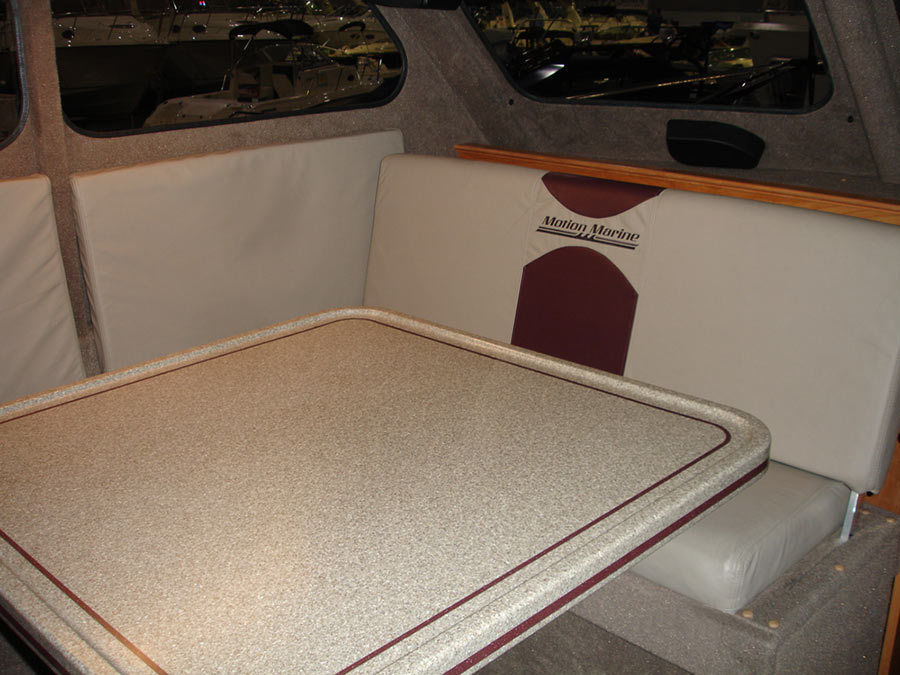

Large dinette folds into bed storage under seats
 Specs
Leather vee birth sitting area w/ double berth beds
 Specs

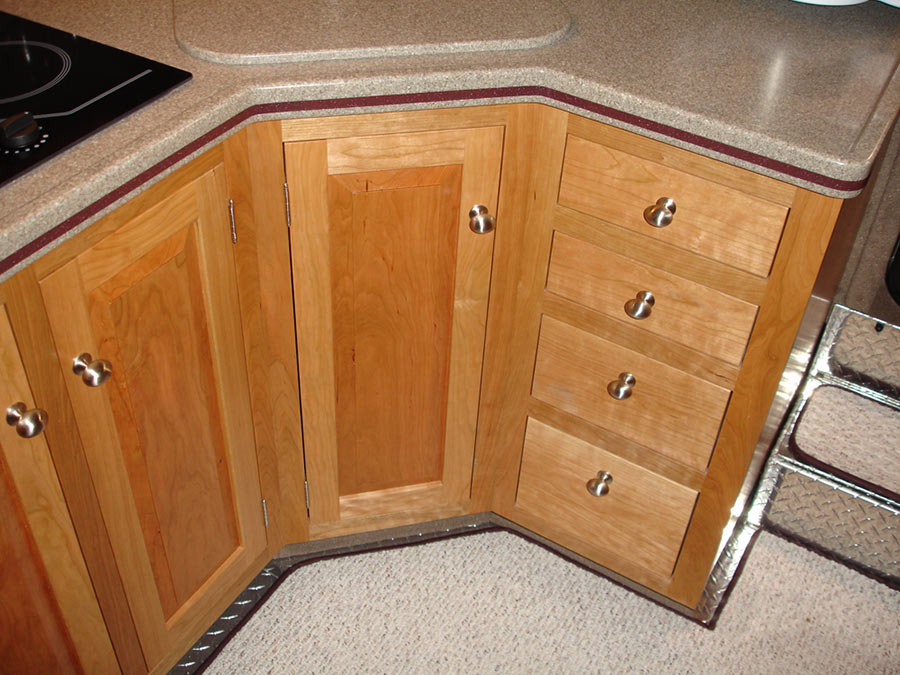

Cherry custom double cabinets w/ automatic drawer closers
 Specs

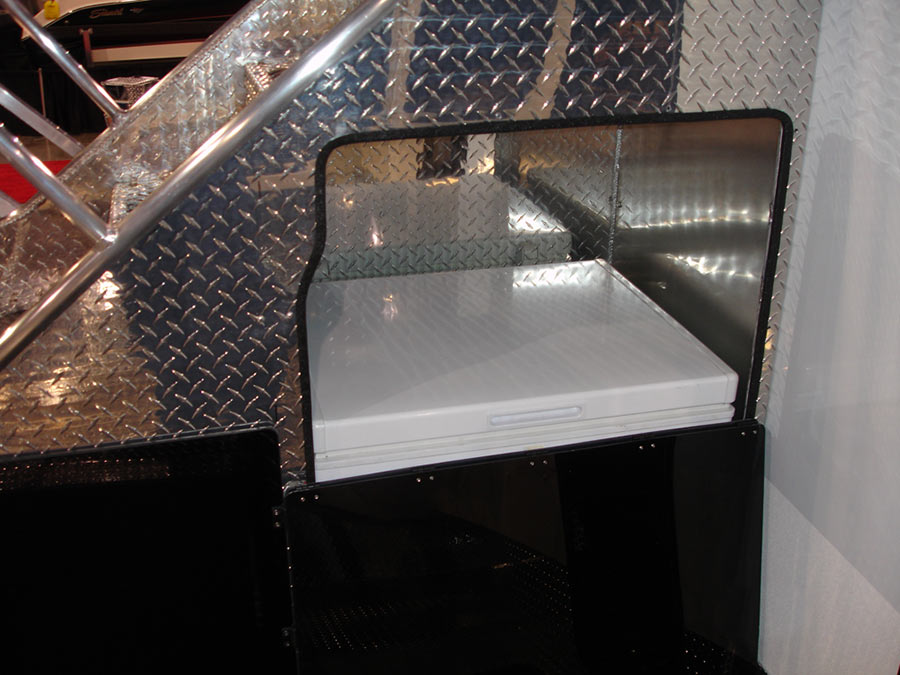

5 cubic ft chest freeze under flybridge || full size stairs & well pump storage
 Specs
Freezer & barbeque storage
Specs
Large lockable rod lockers on each side
 Specs

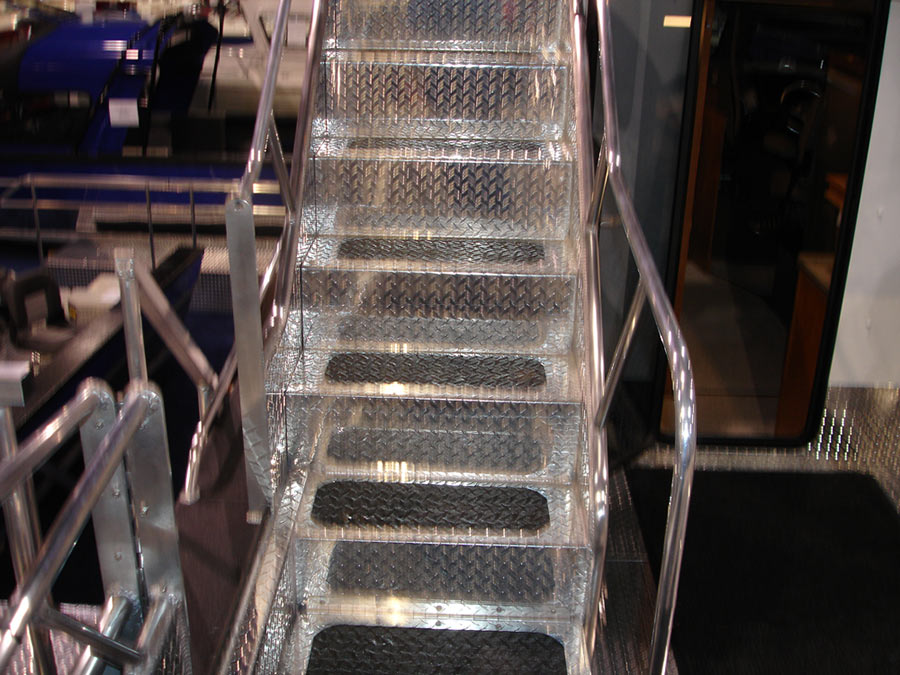

Full width stair way to flybridge
 Specs

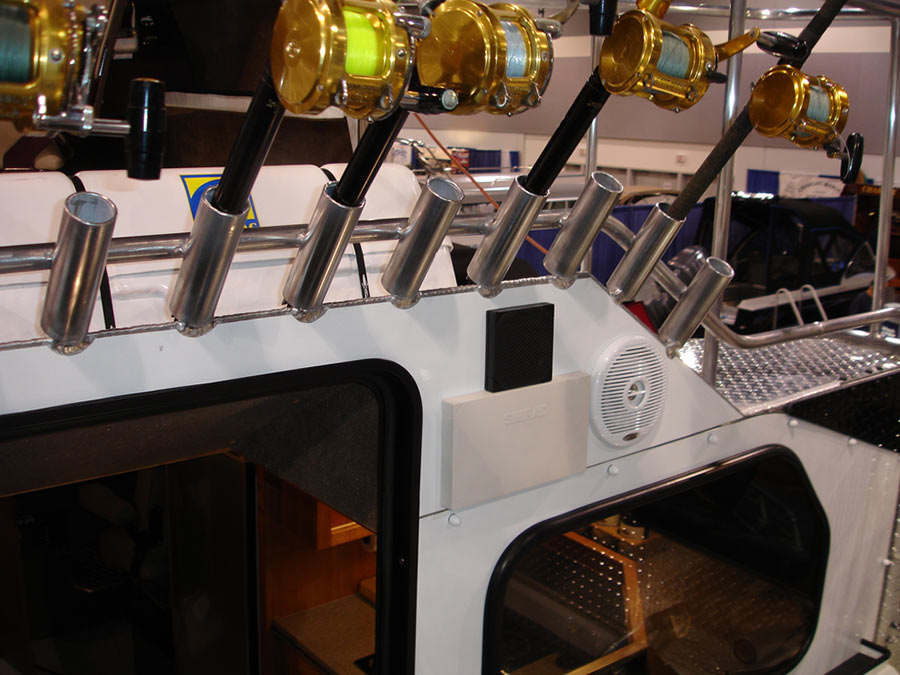

Rear deck Simrad fish finder & lots of rod holders
 Specs

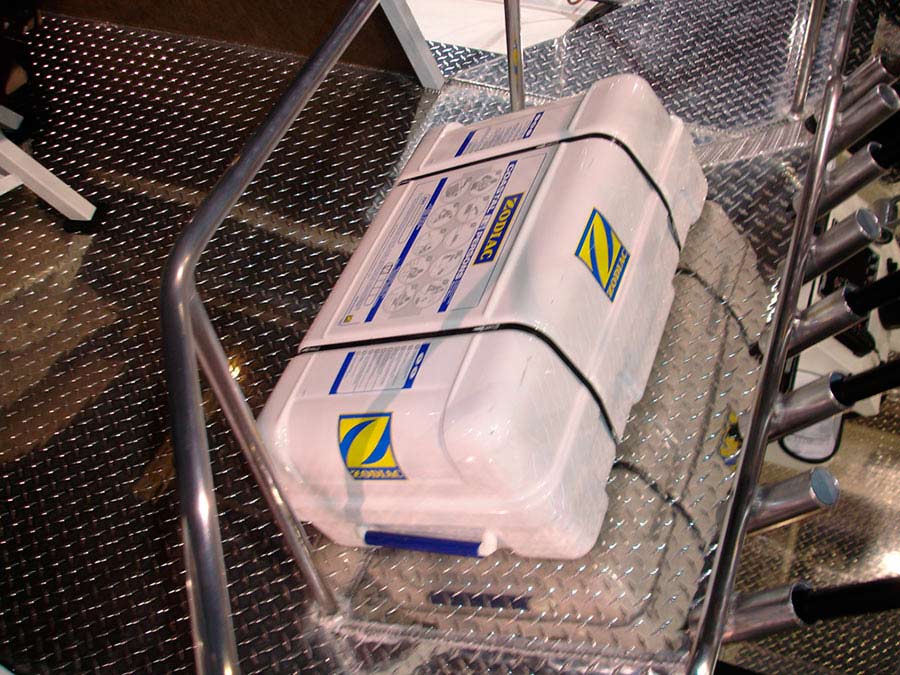

Self deploying zodiac raft
 Specs

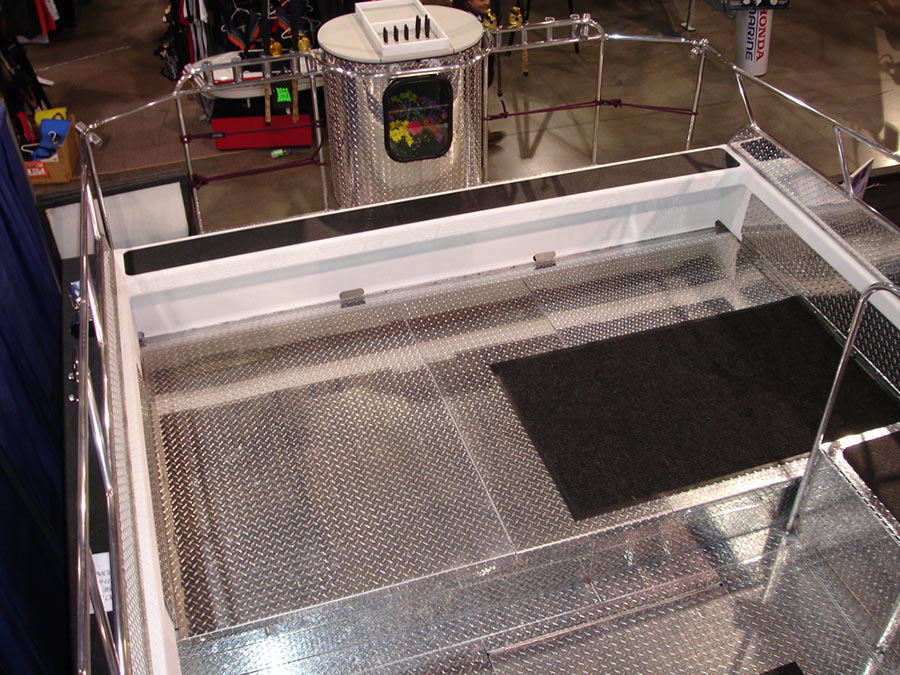

Large rear deck with large swim deck and rails
 Specs

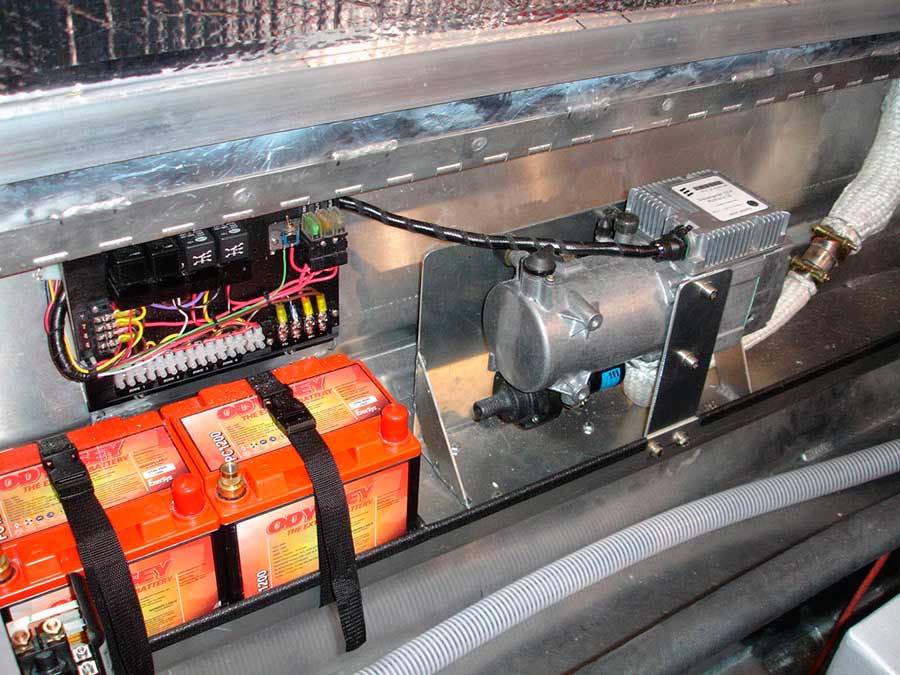

Esbar hot water heating system
Specs

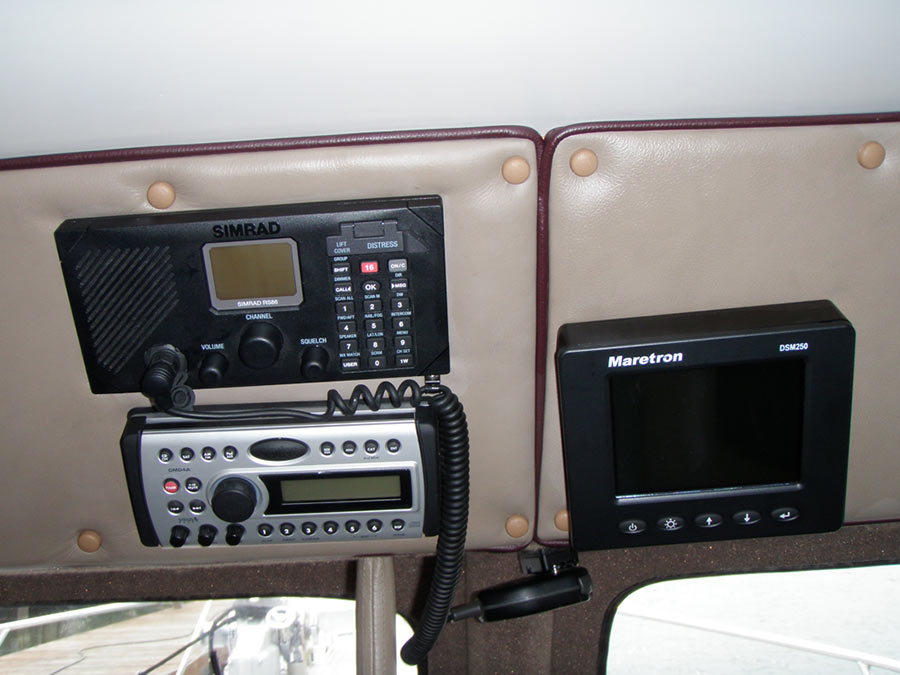

Maretron D250 engine monitoring system || AM/FM/DVD Clarion w/ Sirius Satellite || Simrad RS87 VHF/Hailer System
 Specs

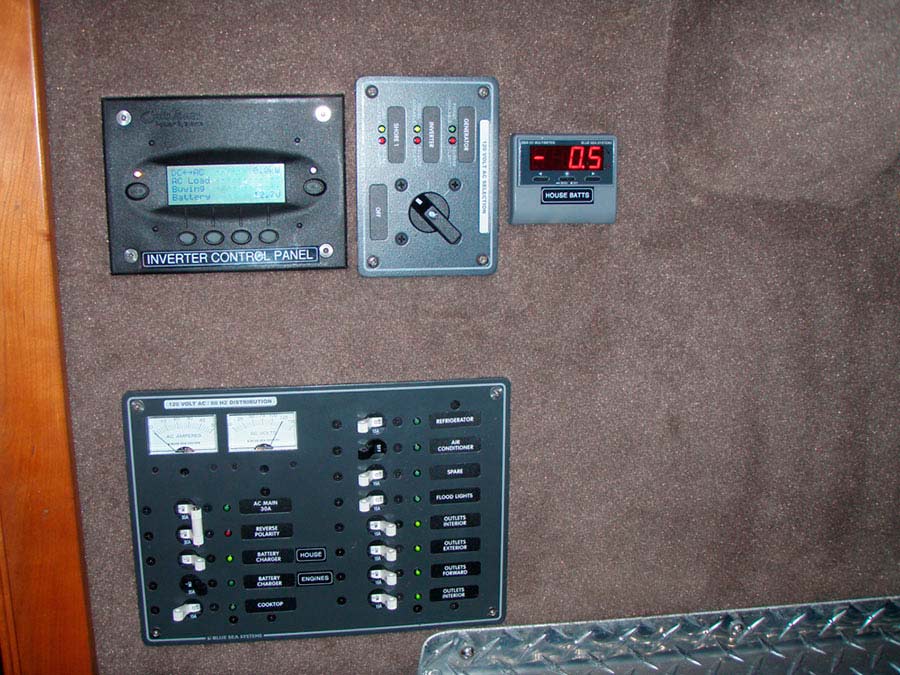

Outback 2000 watt inverter w/ 4 Odyssey 2150 batteries || Blue Sea LED volt/amp house battery monitor || Blue Sea 120 V main panel
 Specs

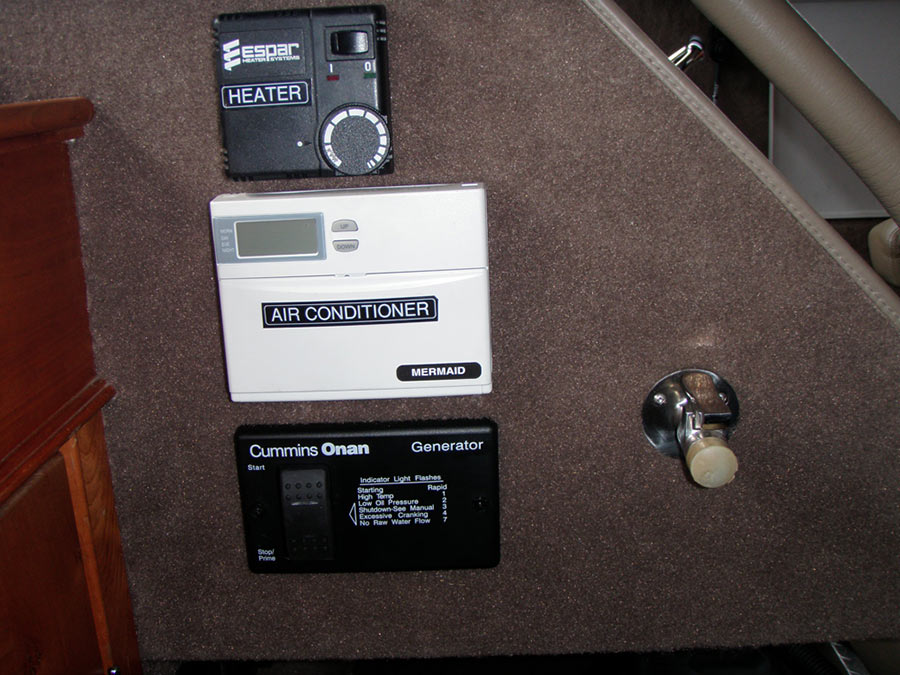

Esbar heating thermostat Mermaid air conditioning control Cummings/Onan Genset control
 Specs

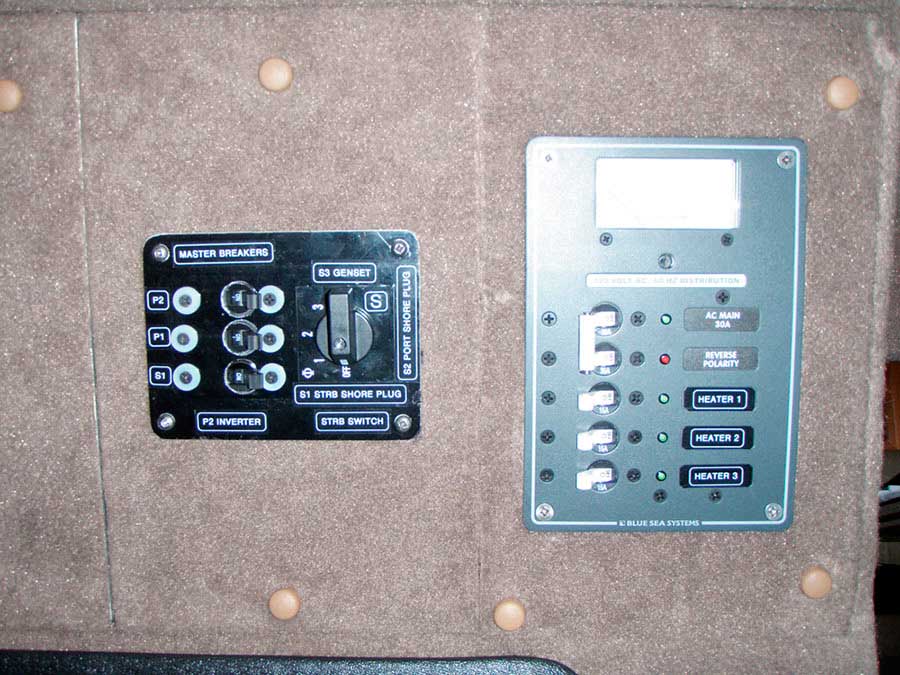

2nd 120V Breaker Panel for 120V heater || 1 in main cabin || 1 in flybridge || 1 in engine compartment
 Specs

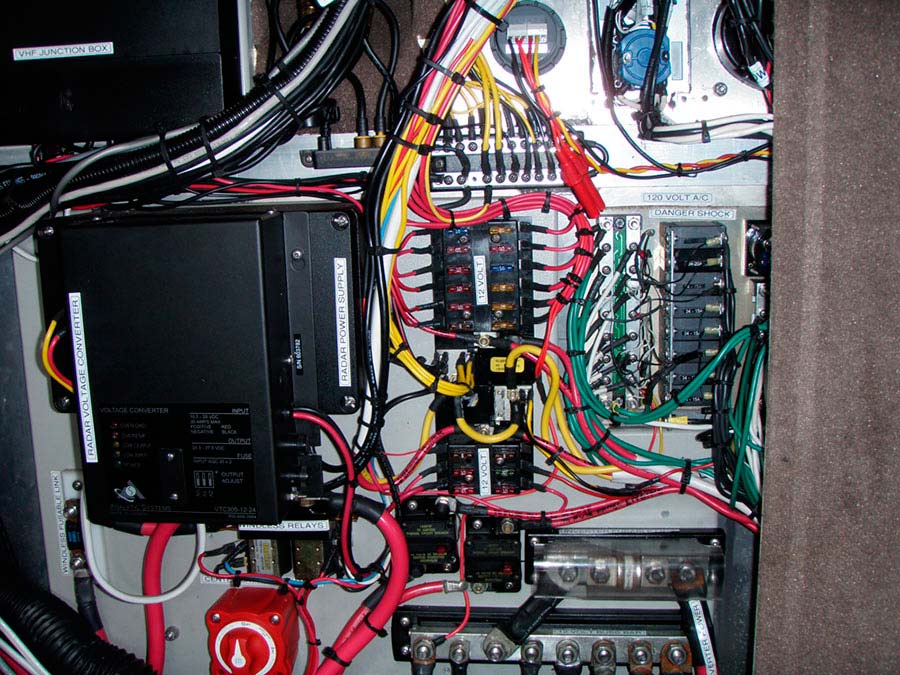

12V and 120V wiring everything labeled
 Specs
TV/DVD CD/AM/FM entertainment center in vee birth
Specs

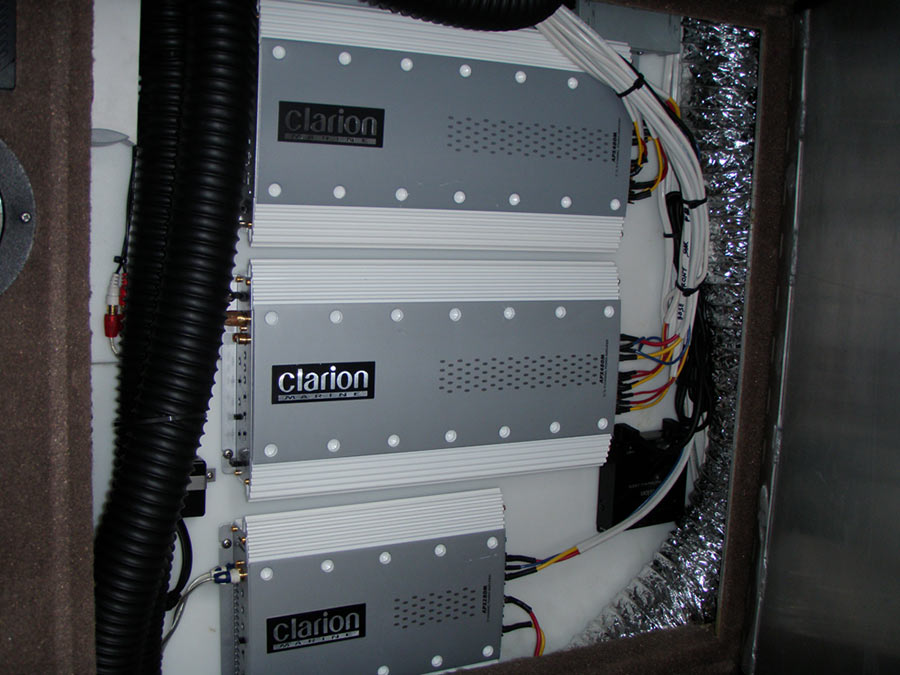

3 Clarion Amps || 2 x 1000W || 1 x 500W || 8 x Bose Speakers || 1 x subwoofer
 Specs

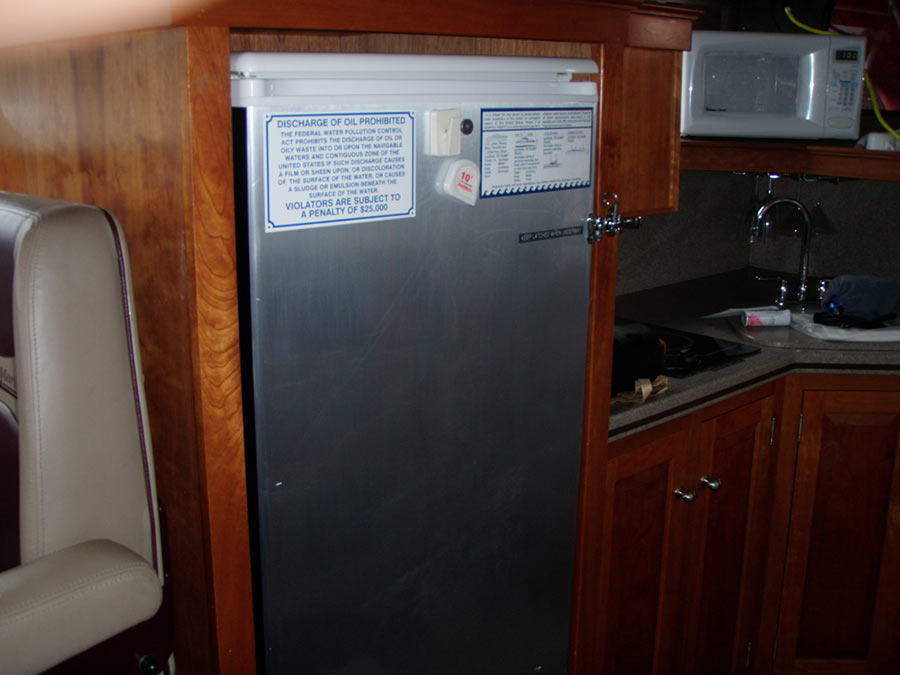

Fullsize refrigerator and freezer
 Specs

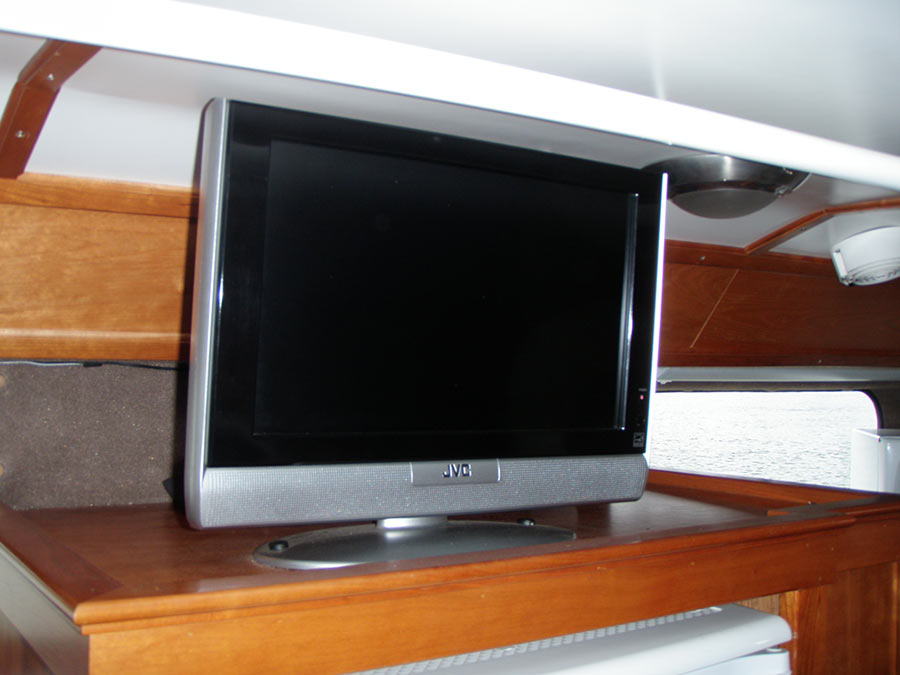

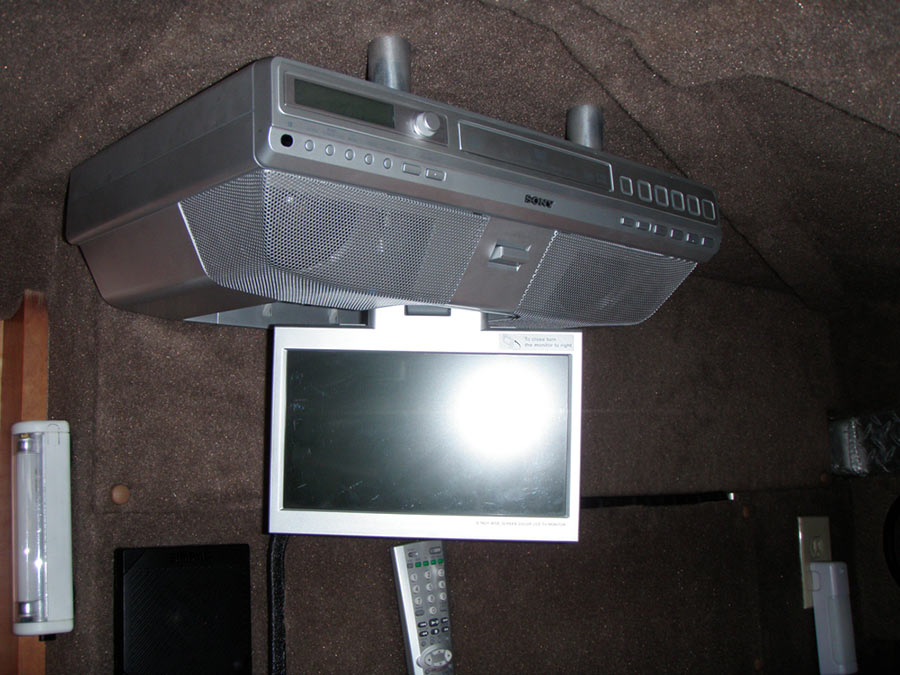

Flatscreen TV w/ DVD player
 Specs

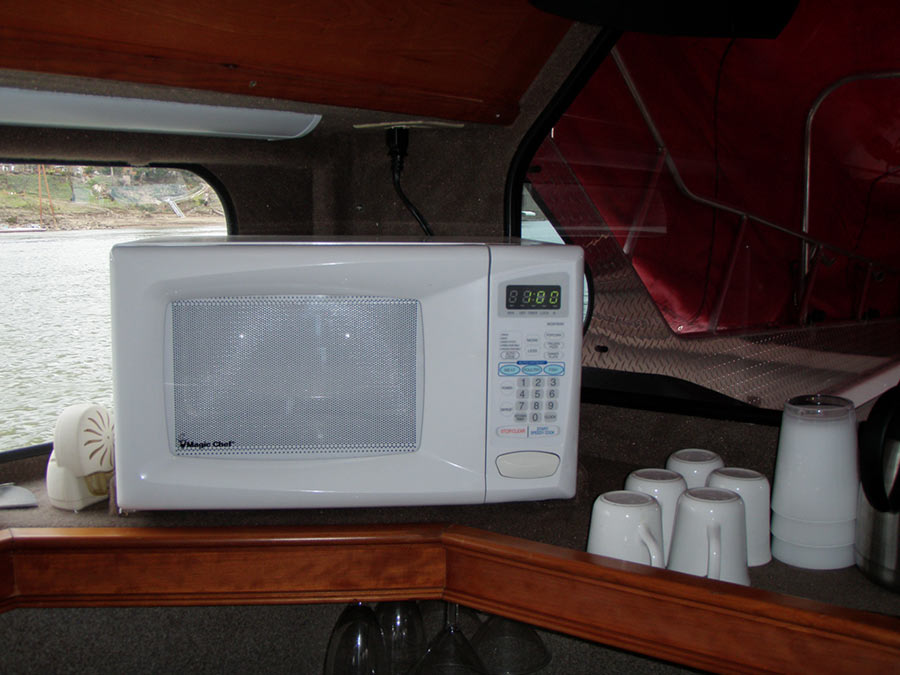

Microwave
 Specs

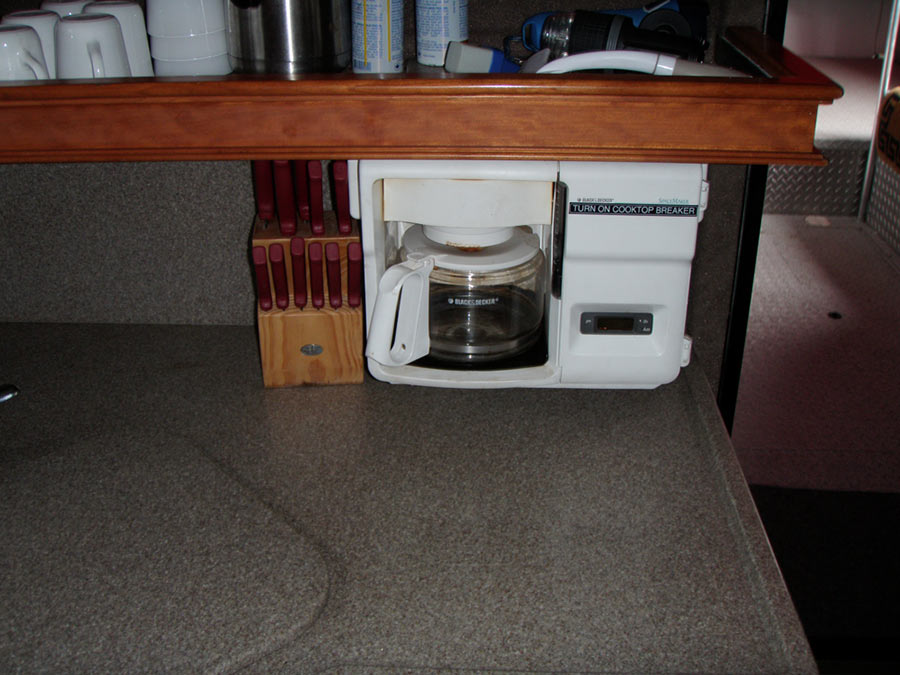

Coffee maker
 Specs

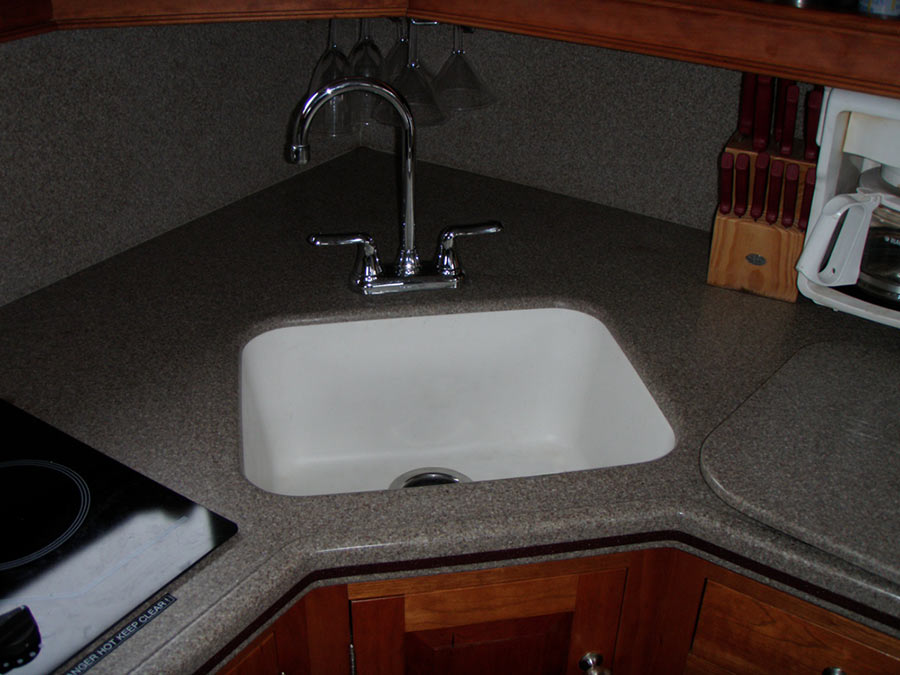

Flush mount sink
Specs

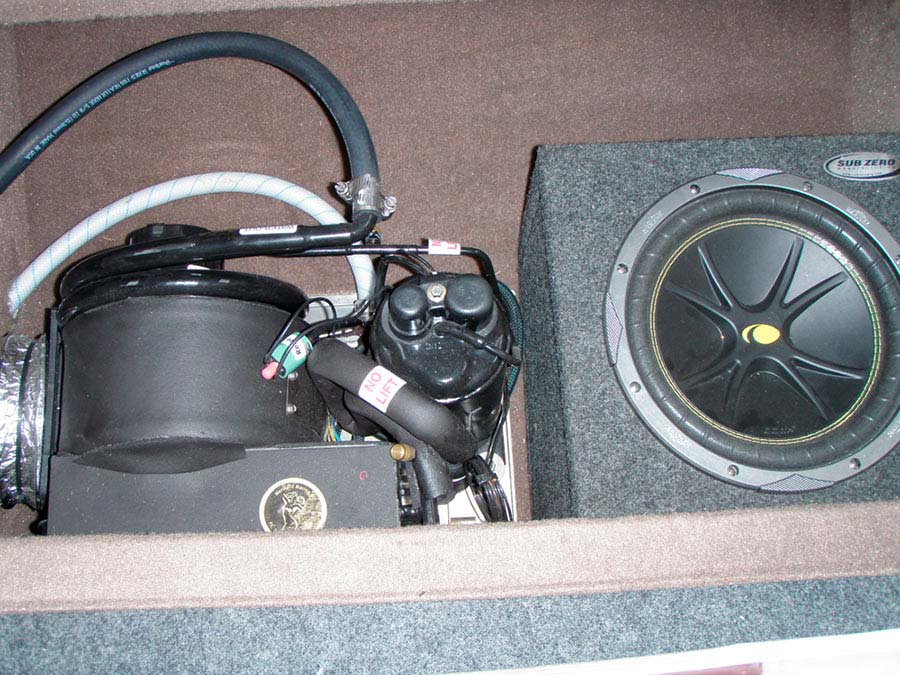

Air conditioner and subwoofer under seat bench in vee birth
 Specs

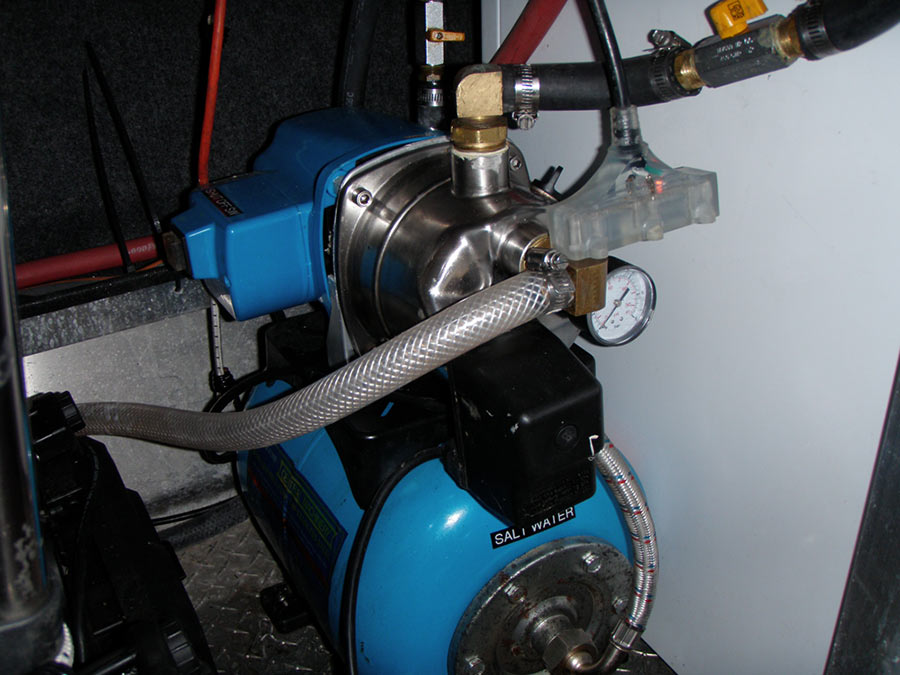

Well pump for raw water washdown and tuna sprayer
 Specs

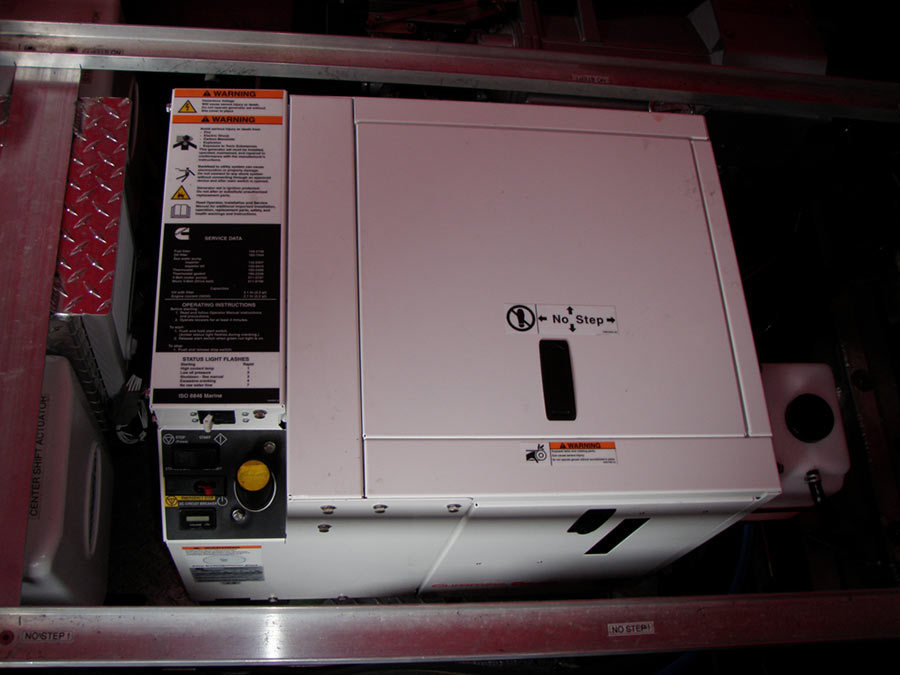

Cummins/Onan 5.5KW Genset
 Specs

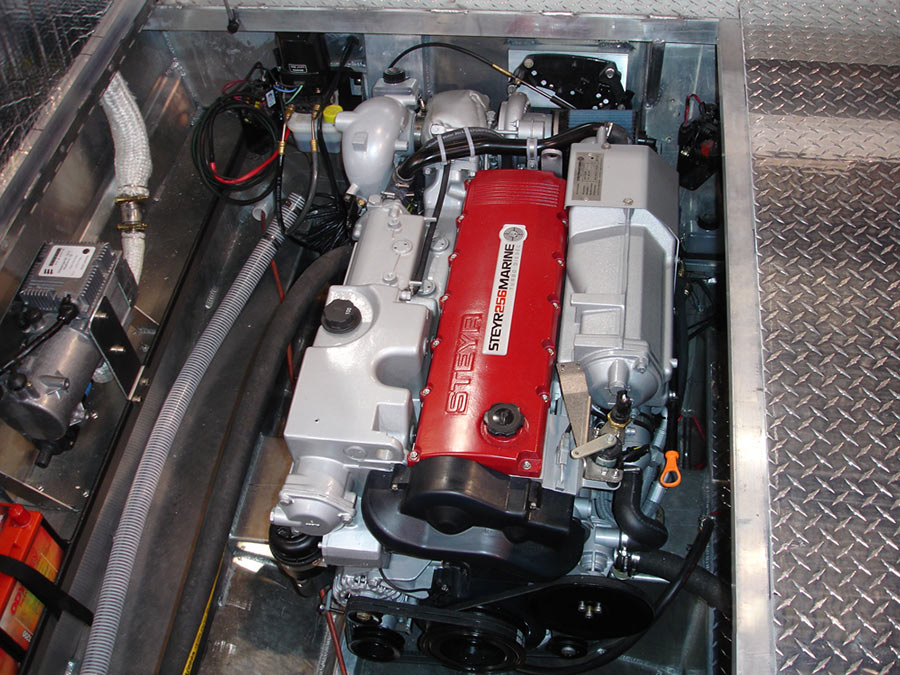

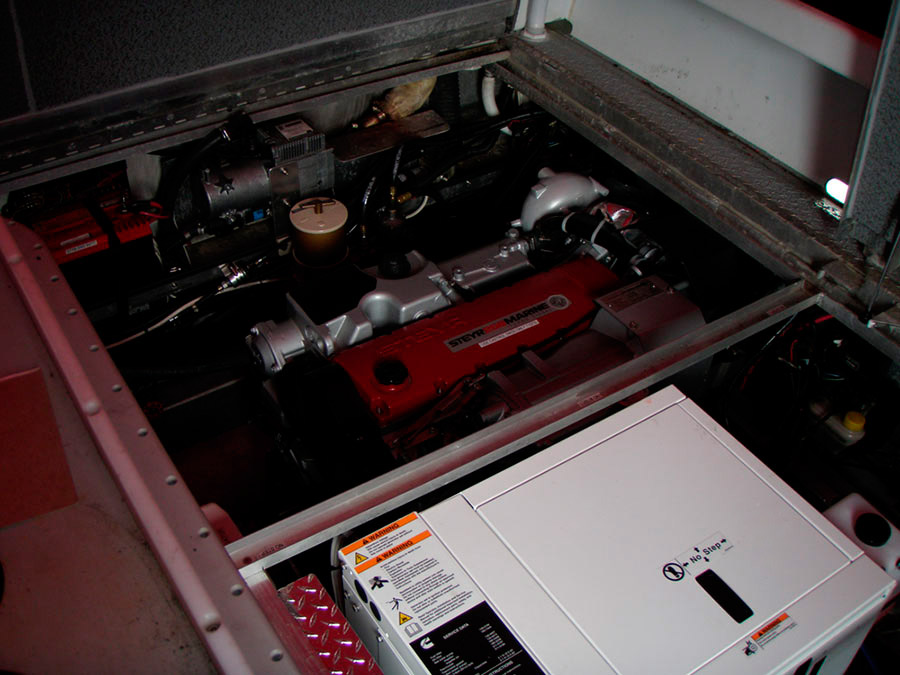

Rear portside engine
 Specs

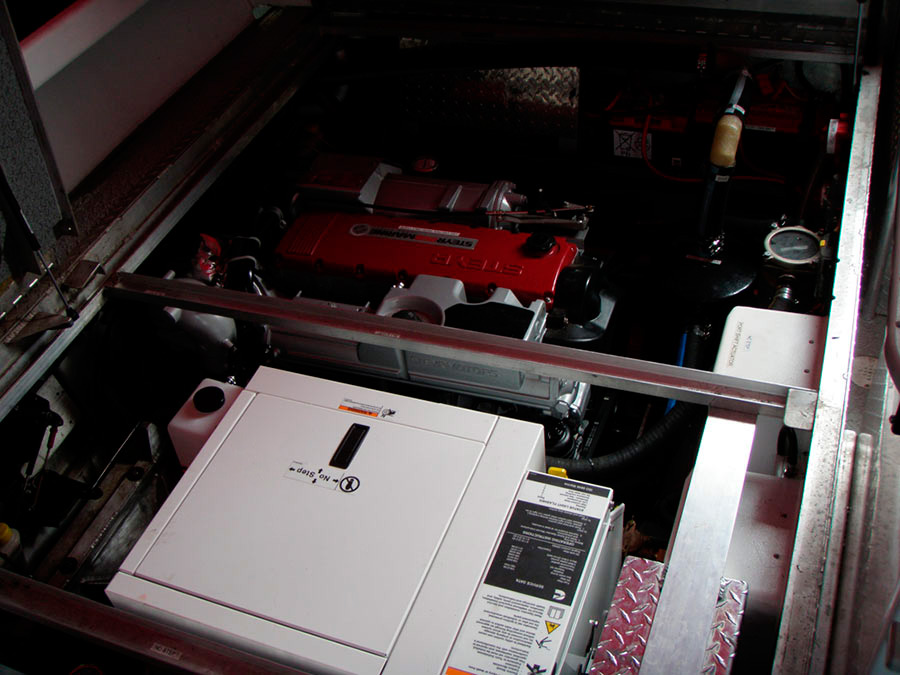

Rear starboard engine
 Specs

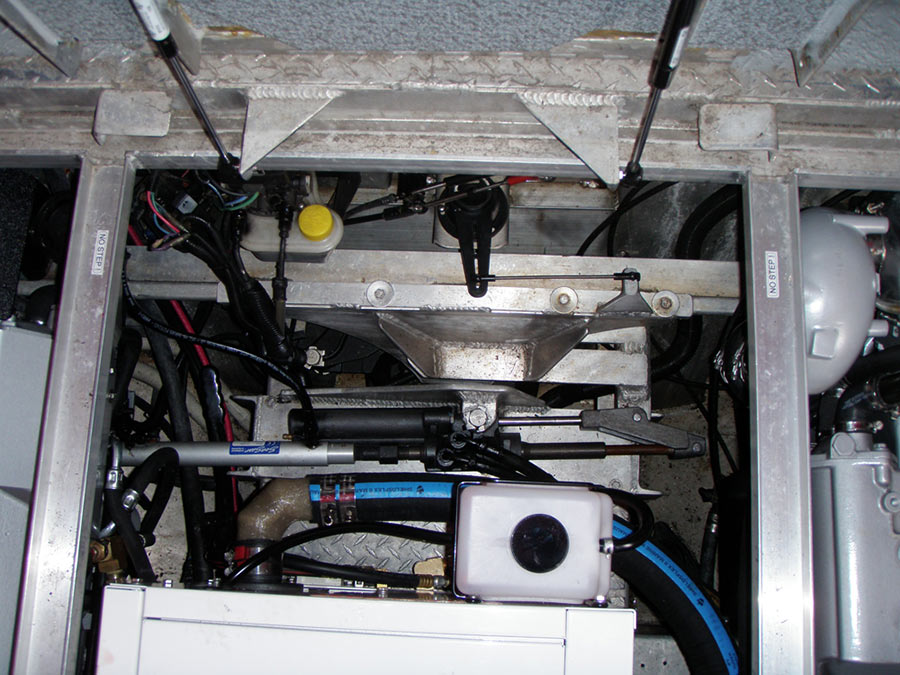

Power assist steering
Specs
3’x6’ in floor insulated fish box w/ gulper pump, starboard side
 Specs
3’x6’ in floor insulated fish box w/ gulper pump, port side
 Specs

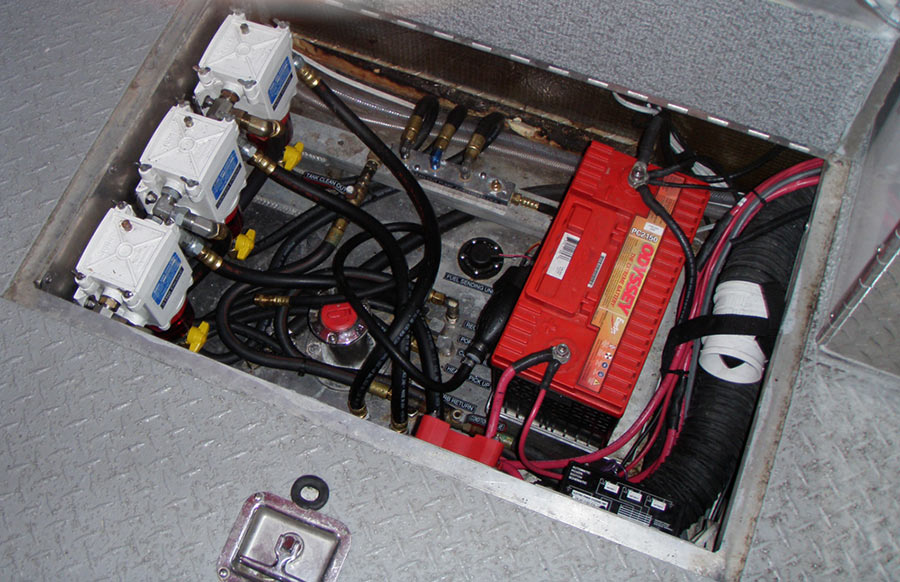

Fuel tank, fuel pickups and Separ fuel filter in clean out pump
 Specs

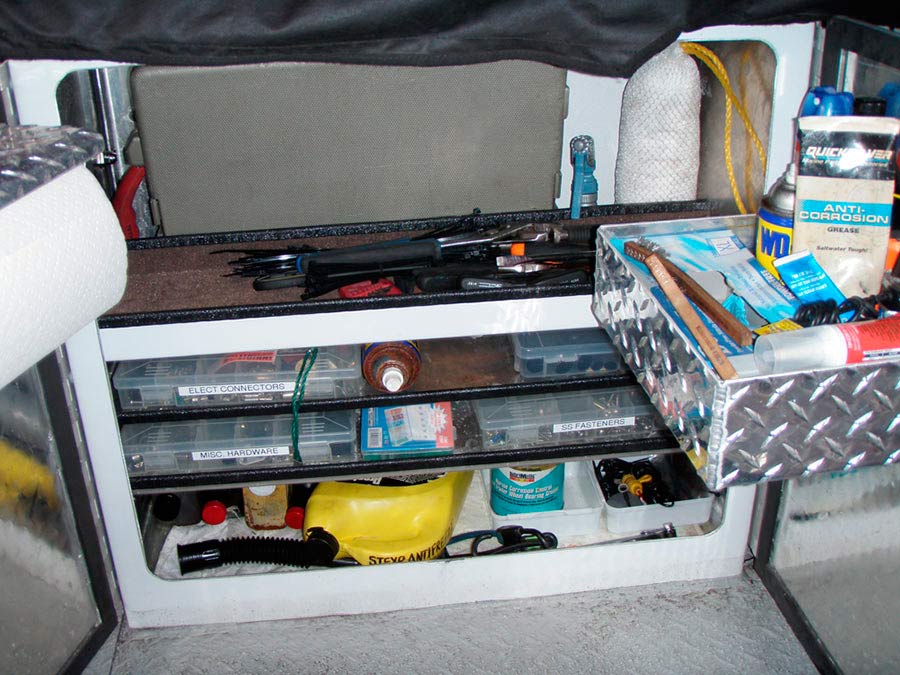

Tool and hardware storage cabinet access under rear deck helm
 Specs

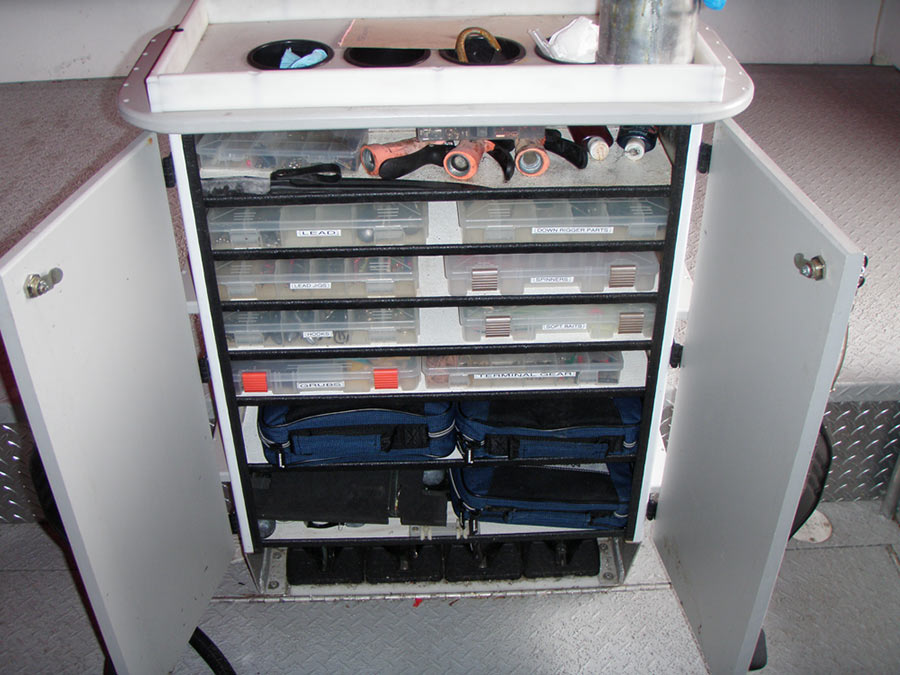

Tackle storage and down rigger weight storage under center rigging station
 Specs

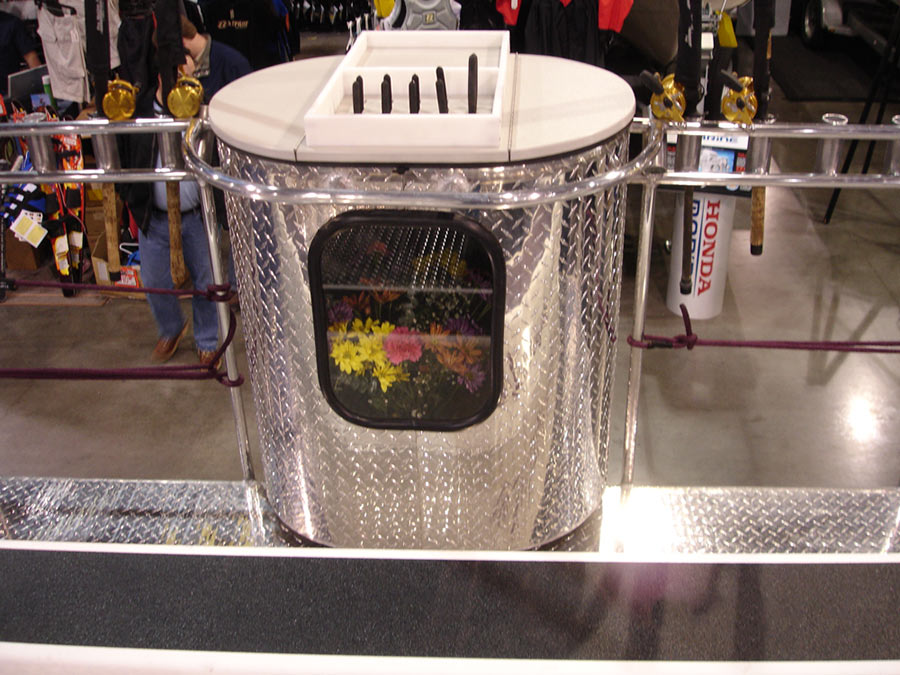

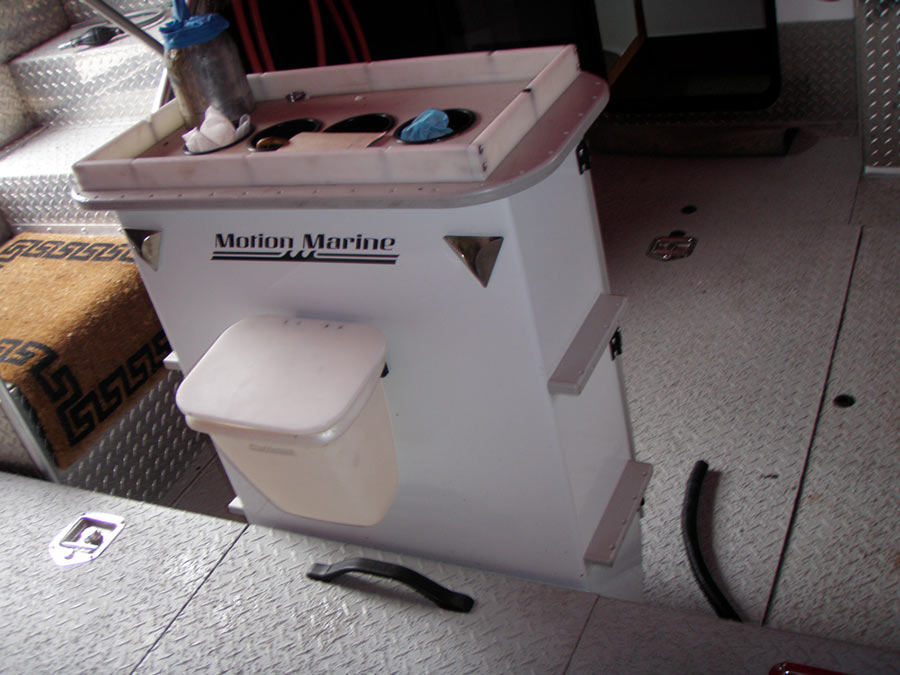

Center rigging station with plug, hook rack, & garbage can
Specs

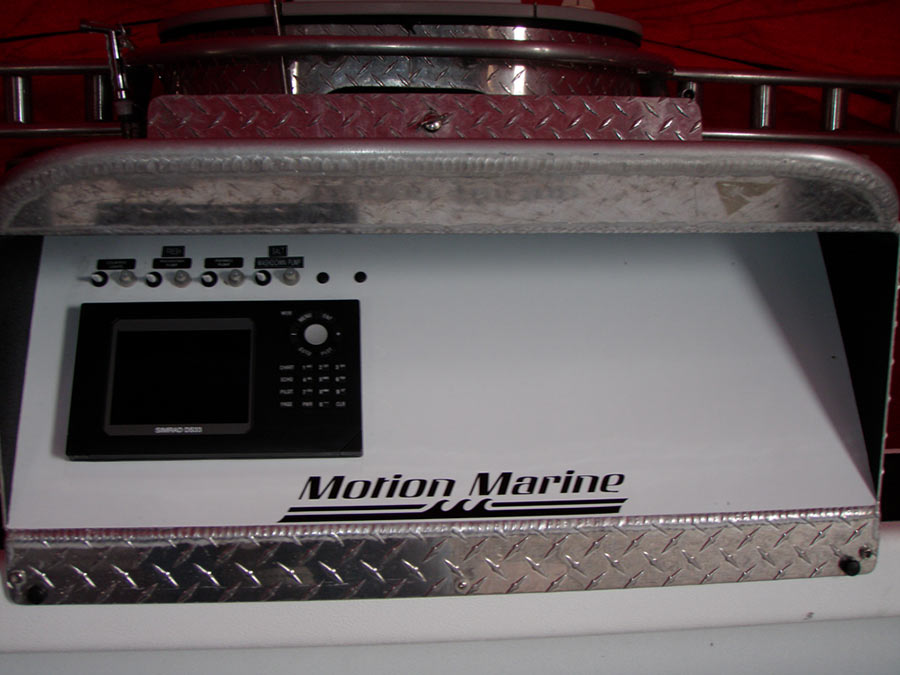

Rear Simrad DS33 depthfinder and pump switches || spare room for add on electronics or TV
 Specs

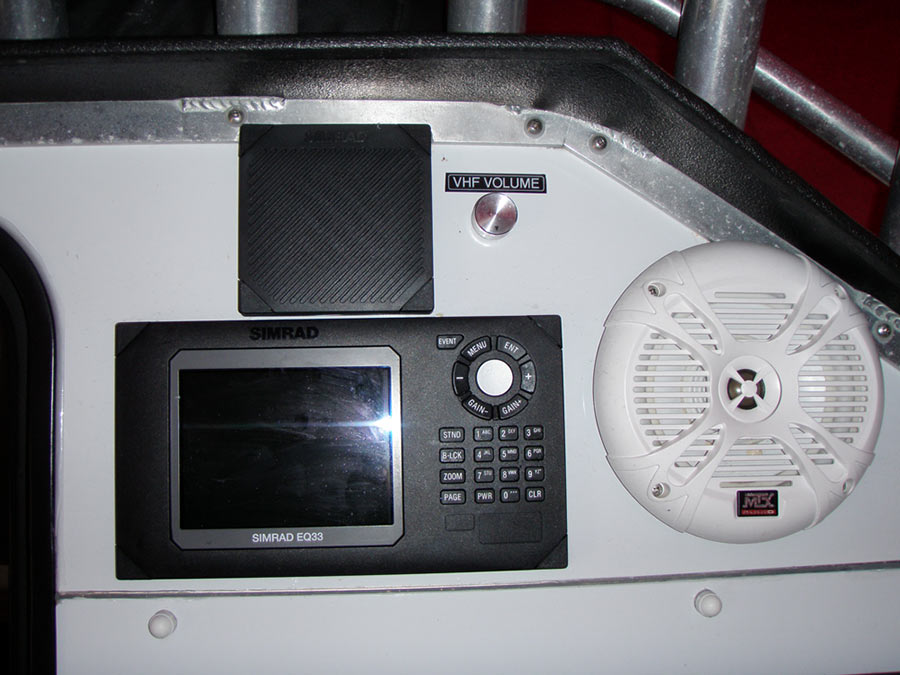

Rear deck Simrad EQ33 depth finder facing forward || VHF/Hailer
 Specs

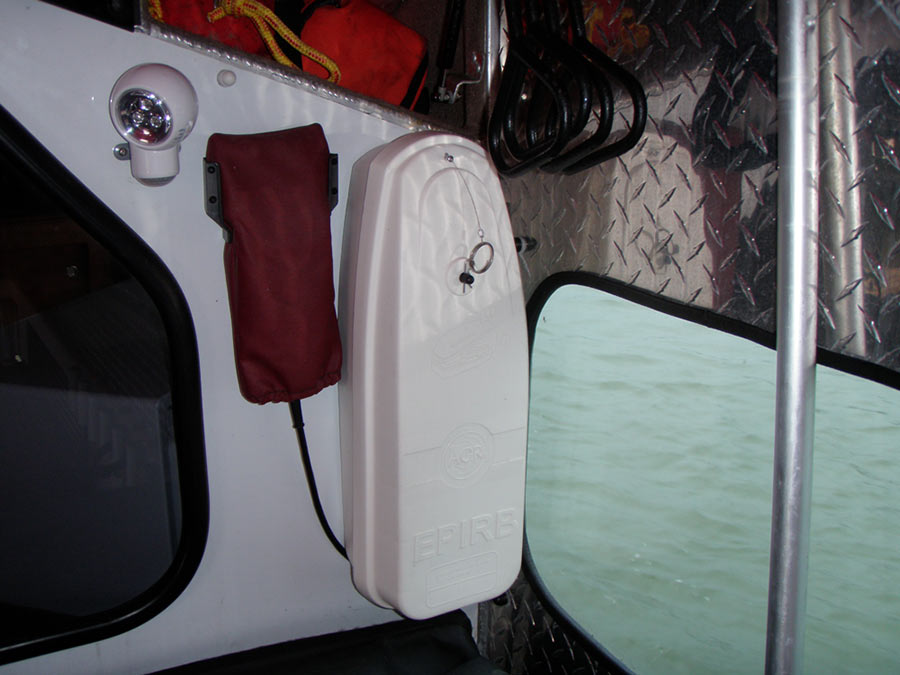

Handheld AP27 auto pilot || EPIRB || motion sensor night light
 Specs

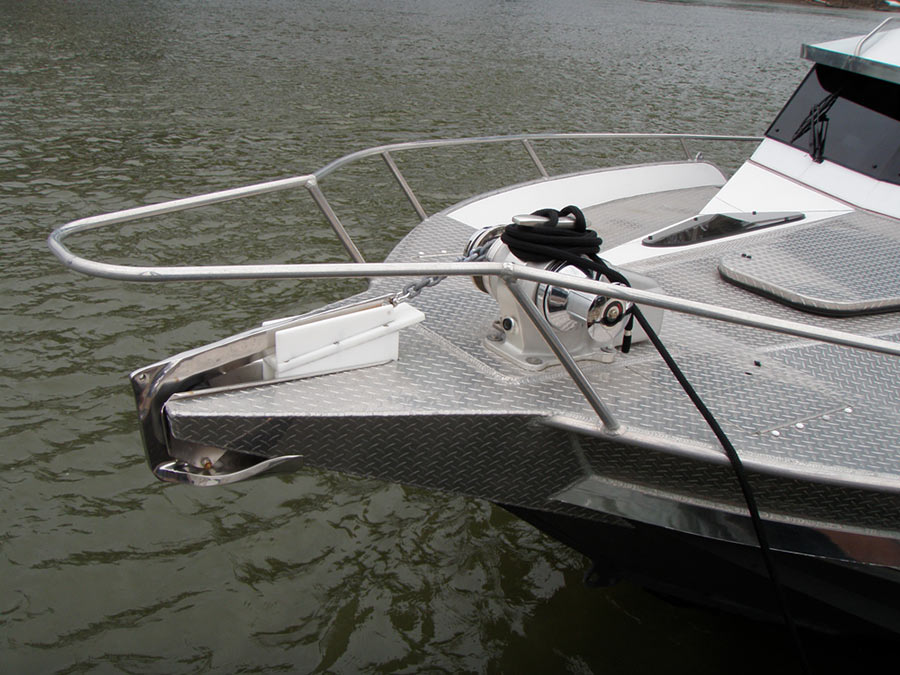

Vetus elect windless controlled at 3 stations || SS Bruce style plow anchor || 100’ chain || 500’ line
 Specs

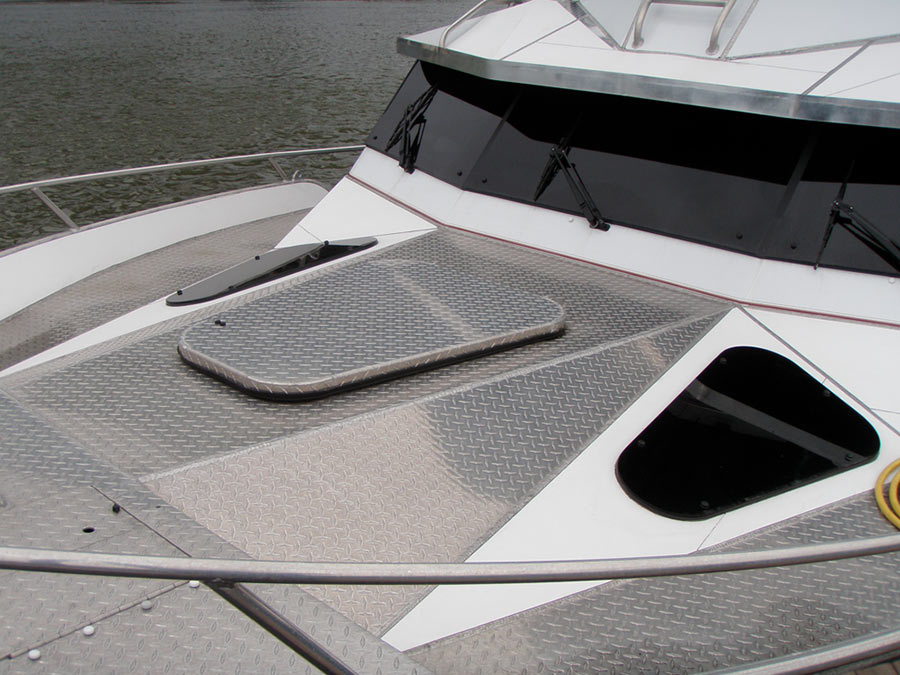

Large hatch to vee birth || tinted window into vee birth
 Specs

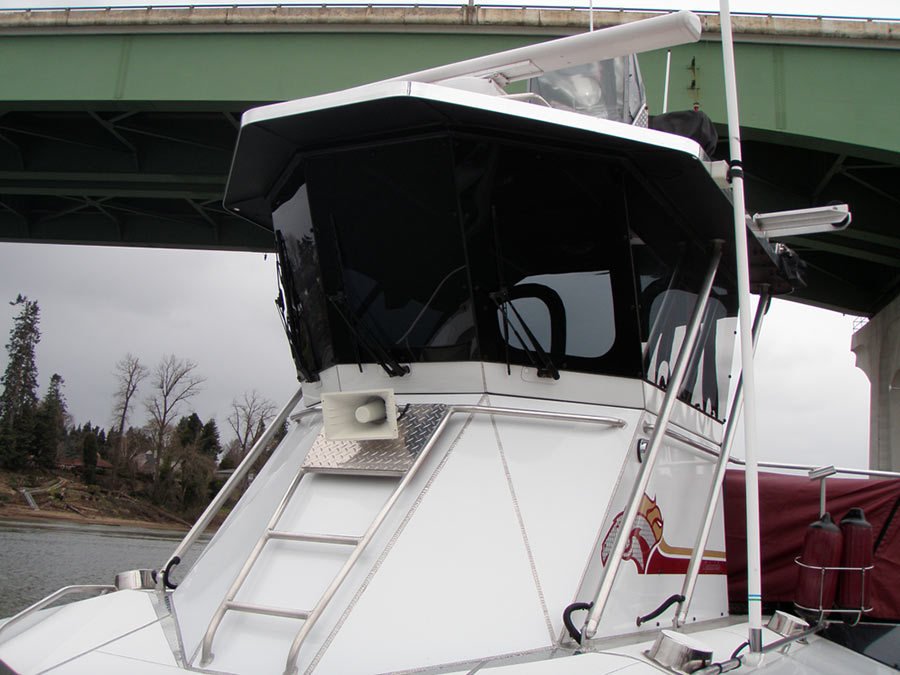

6KW open array Simrad 64 mile radar || loud speaker hailer/listening || wrap around Lexan windows w/ scratch resistant coating
Specs

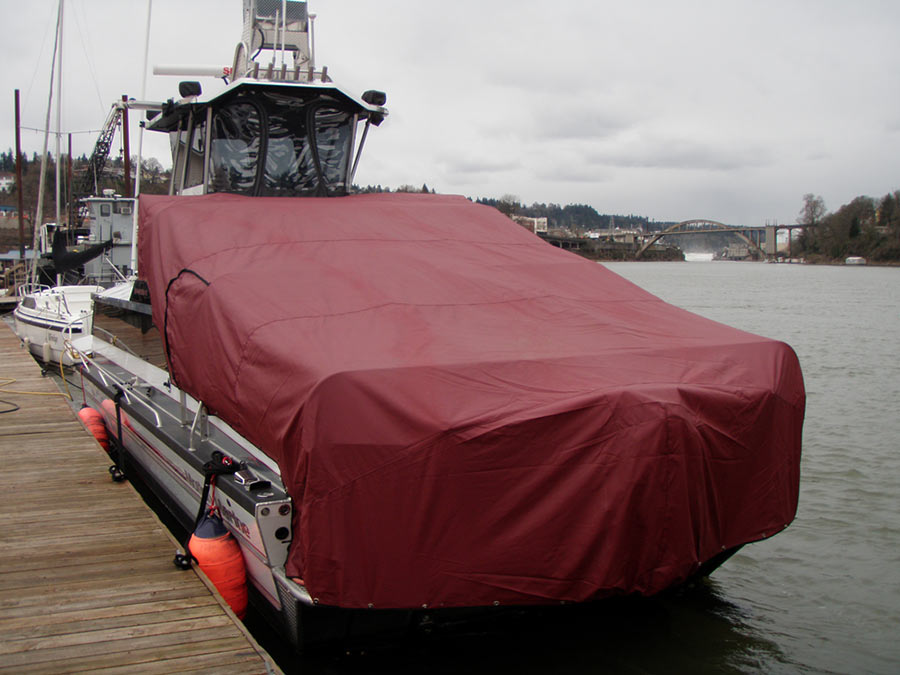

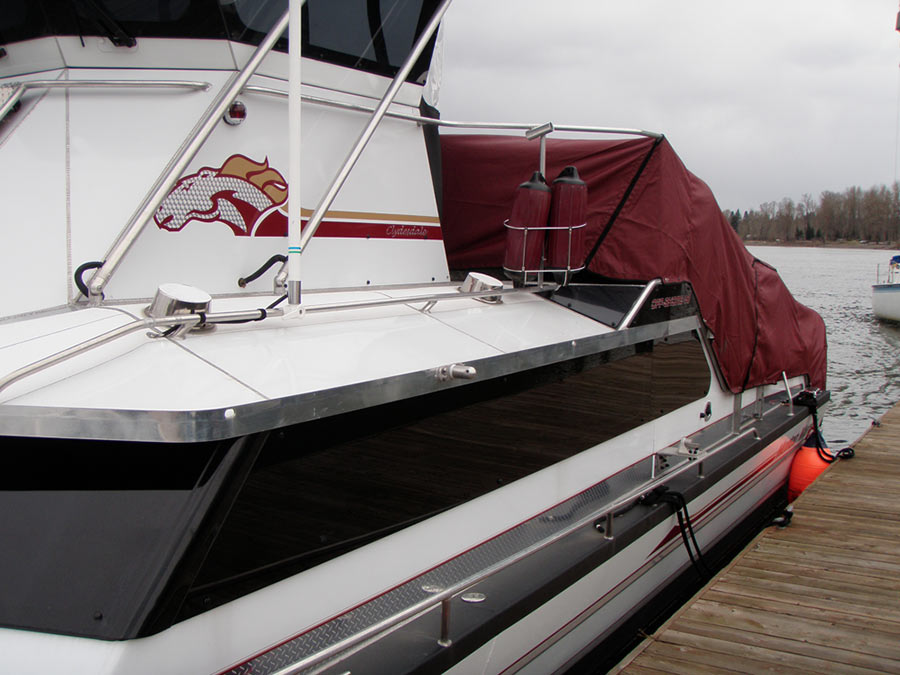

Full mooring cover w/ storage bag covers for all fixtures
 Specs
Specs
