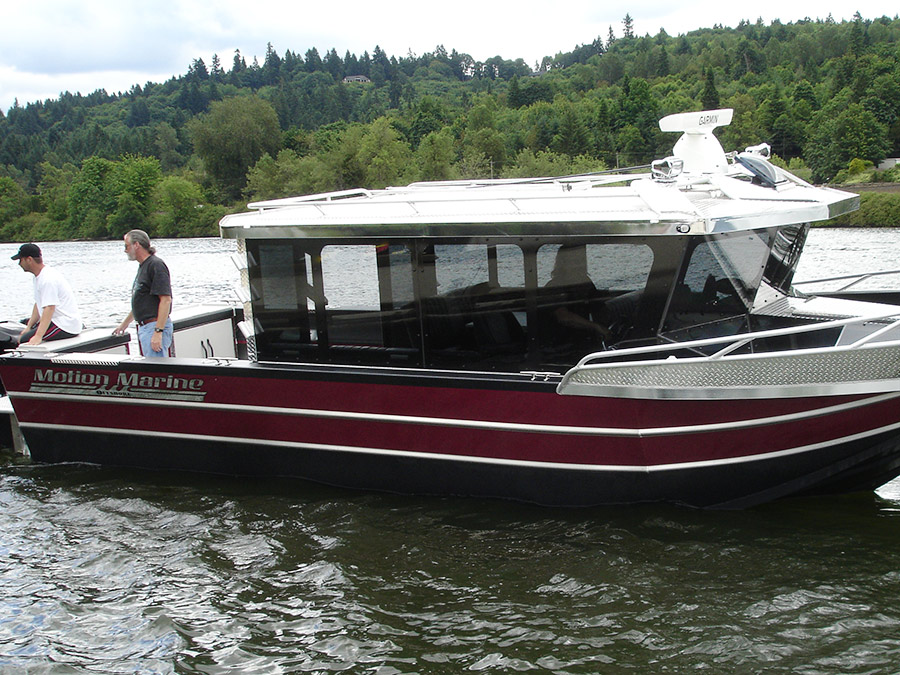

Length: 28'
Overall:37' Beam bottom: 9' Gunwale: 11'
|
Bottom: 22° constant
dead rise .250 5086 alloy exclusive Motion Marine drop chine design
|
Side: 46" high .160
thick 5052 alloy one piece double rib
|
Transom: .250 thick
5052 alloy 5' extended pod design exclusive Motion Marine outback
outboard
|

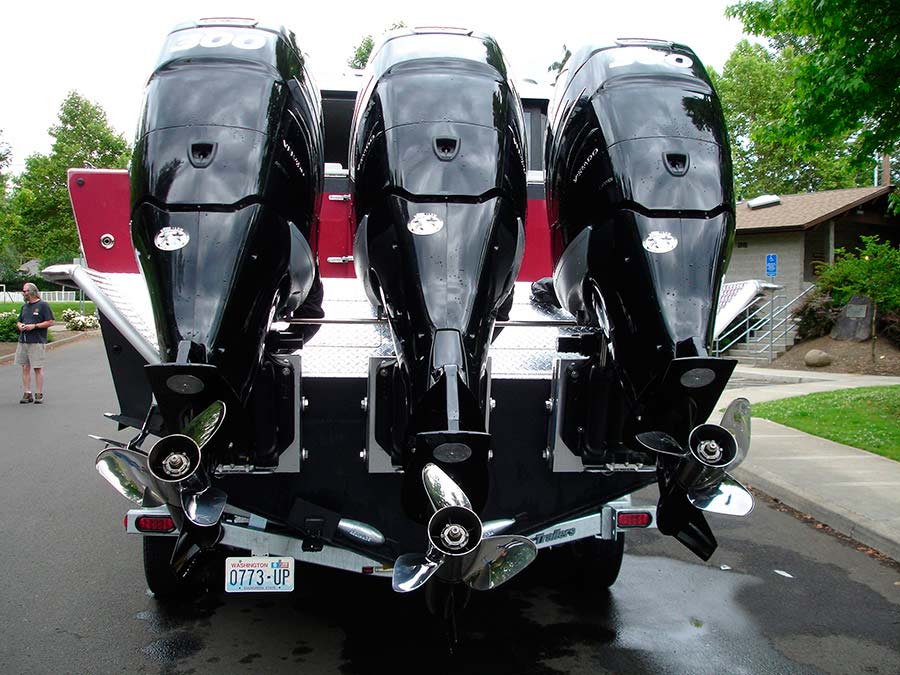

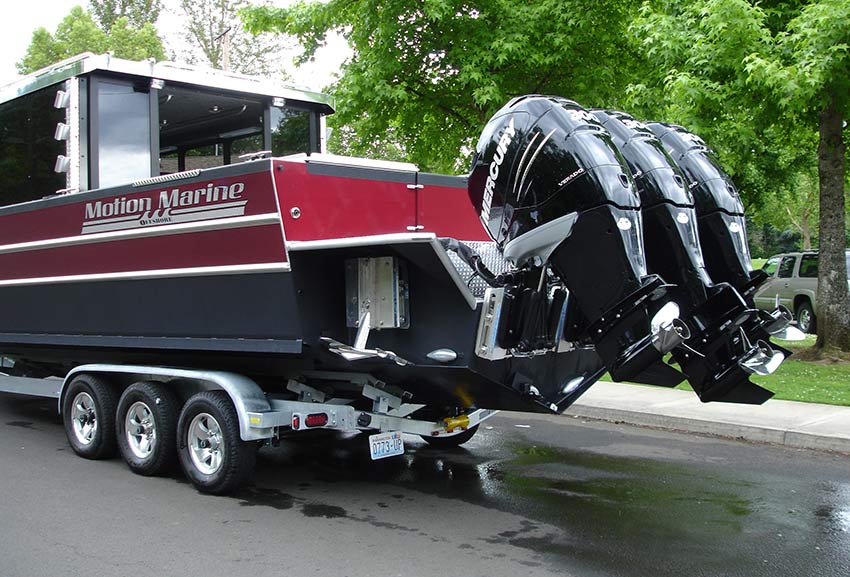

Power: 3 Mercury 300

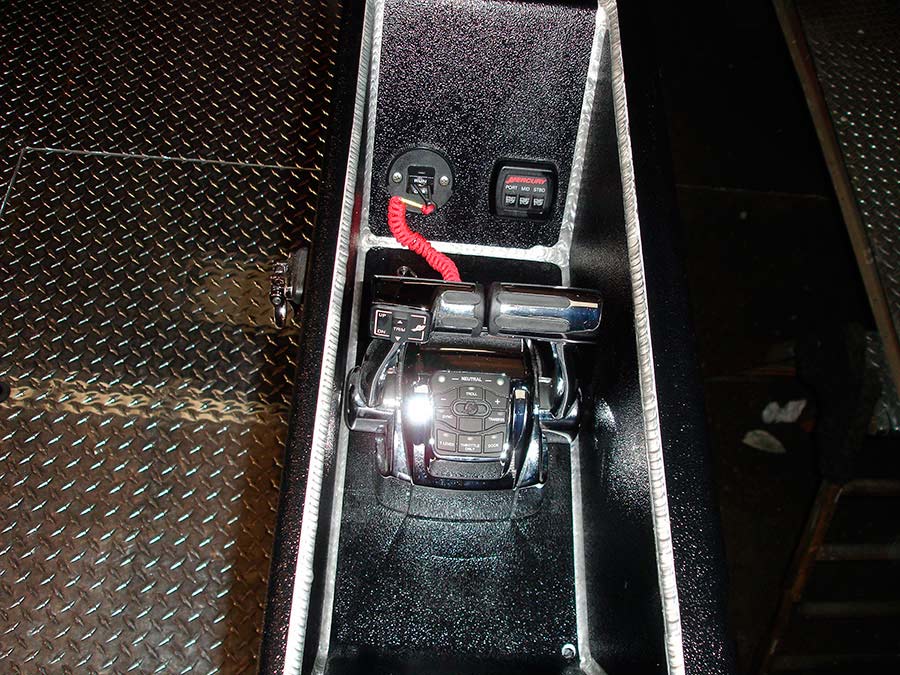

hp Verados with Smartcraft Vessel View instrument screen and 2 station
controls drive by wire
|

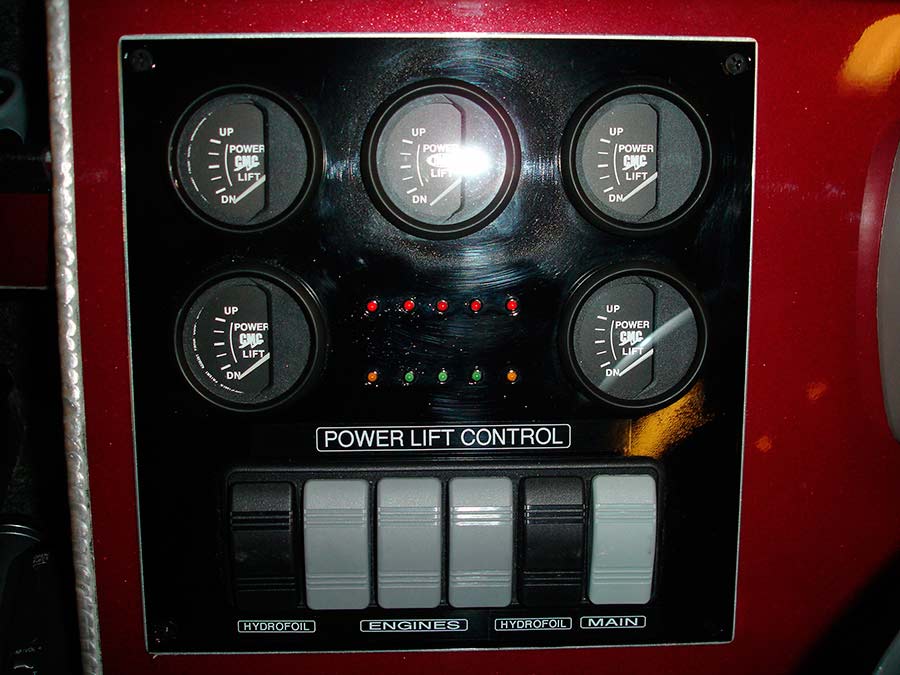

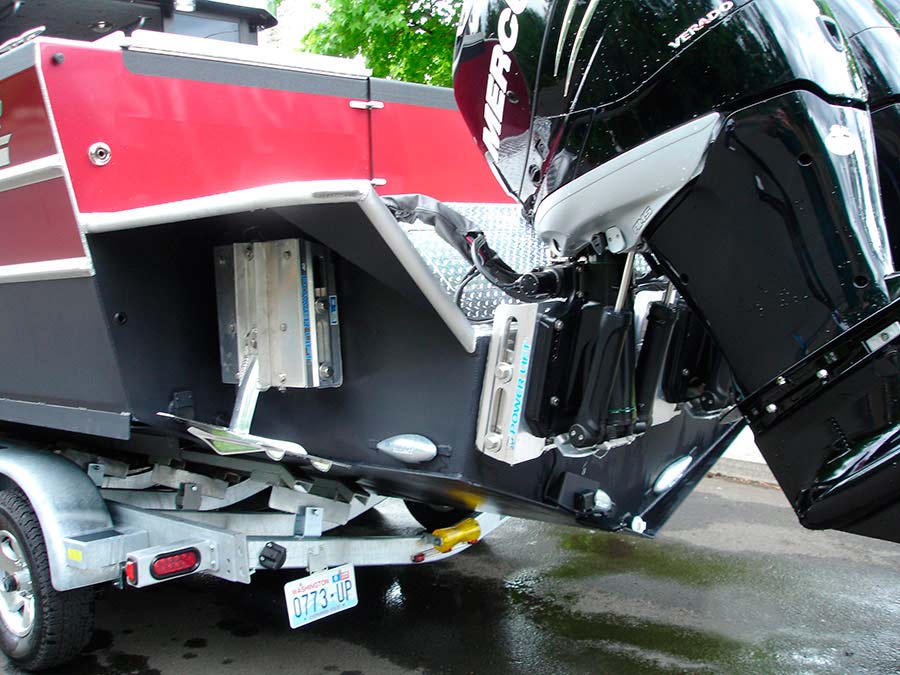

5 Power jack plates,
one on each engine, 2 on hydro foil trim tabs, all on central control
panel
|

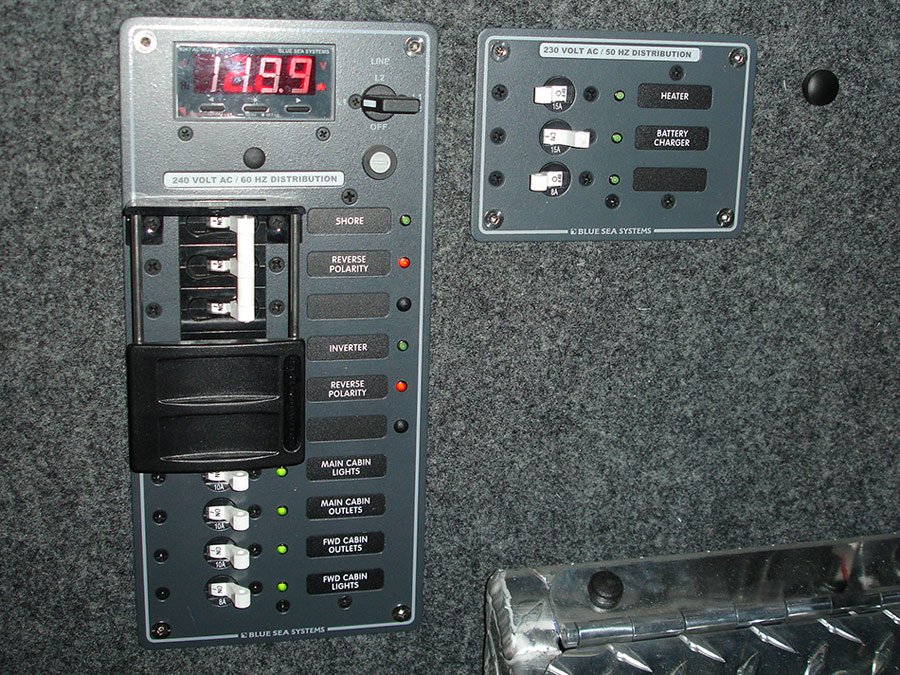

30 amp shore power
panel and cord / 2000 watt inverter system 2 on board charging systems
|

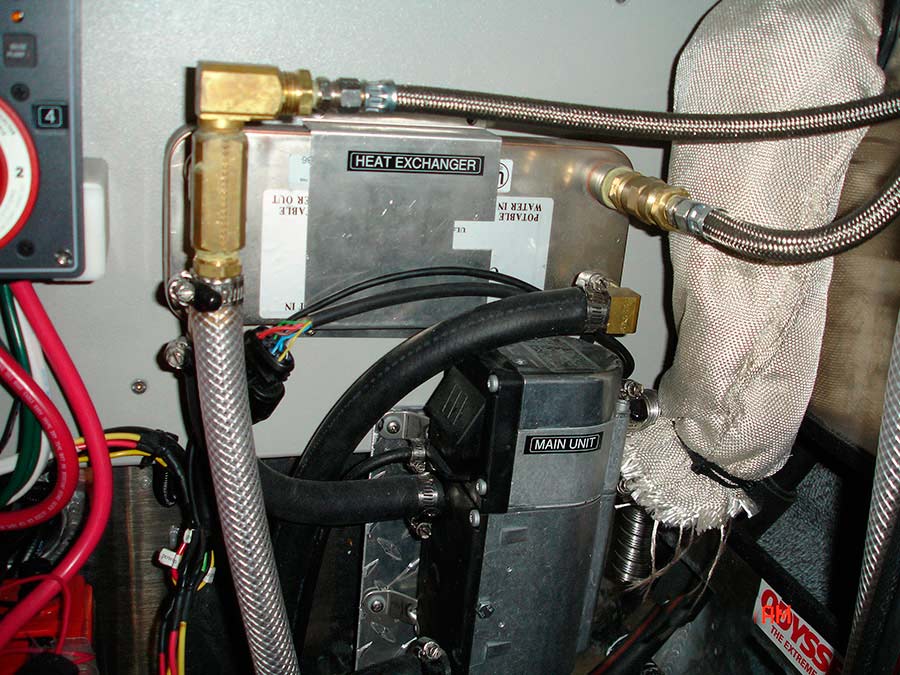

Esbar hot water
heating system with hot running fresh water
|

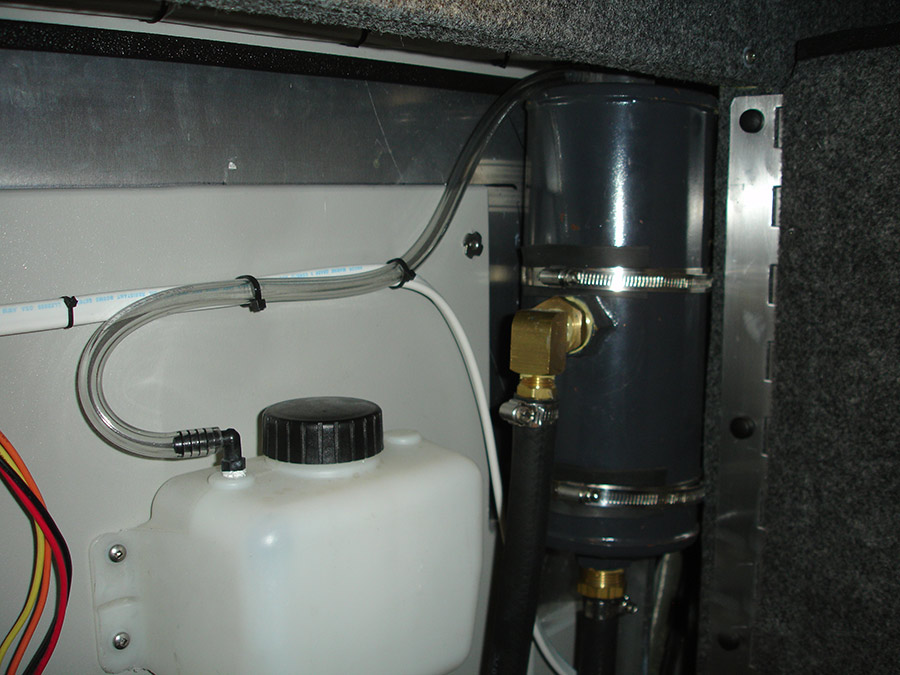

hot cold fresh water
system 50 gals
|

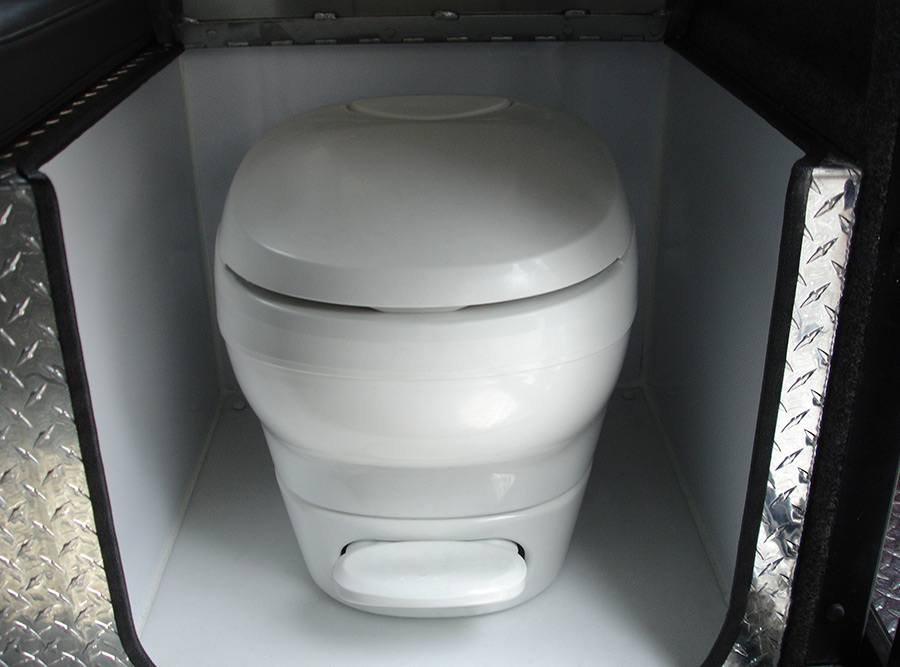

on board flush head
30 gal holding tank
|
small 2 person vee
birth
|

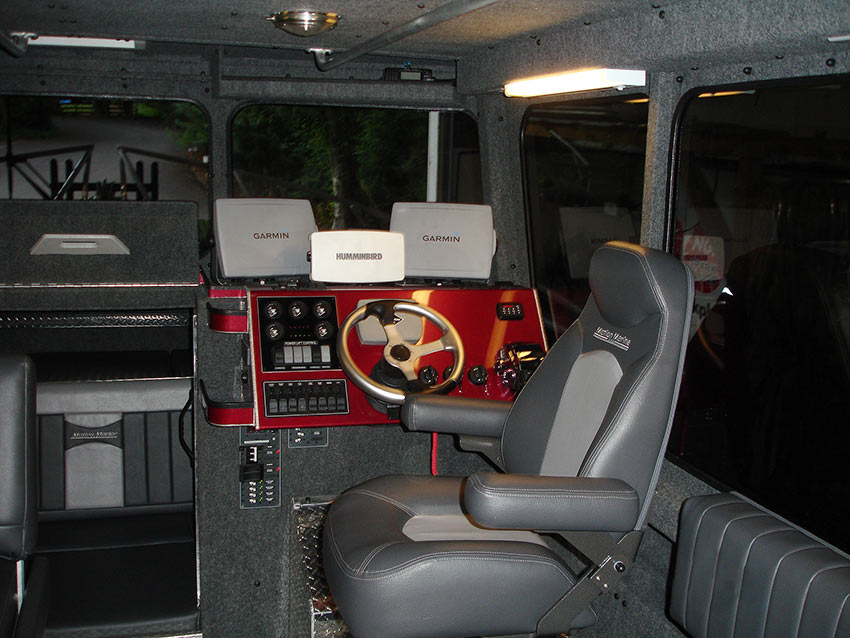

swivel high back
spring ride helm seat
|

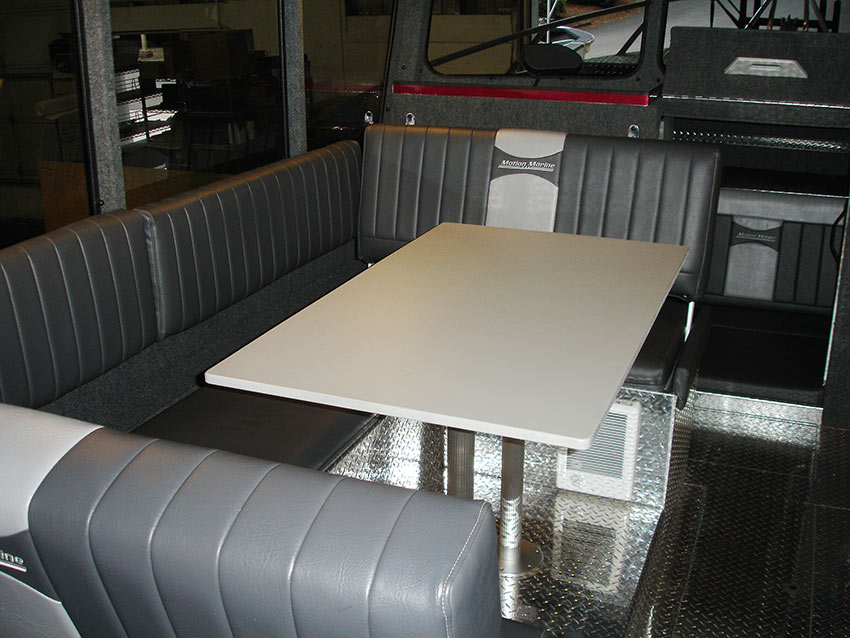

extra large forward
or rear facing dinette table and benches that folds into full length
bed port side
|
full wrap around
glass with 48" double siding door
|

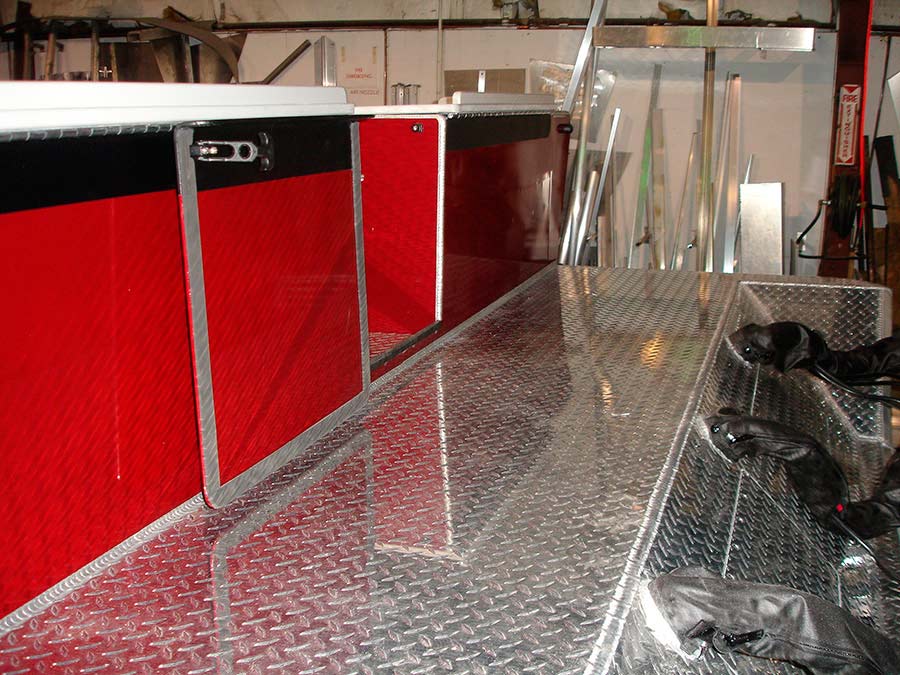

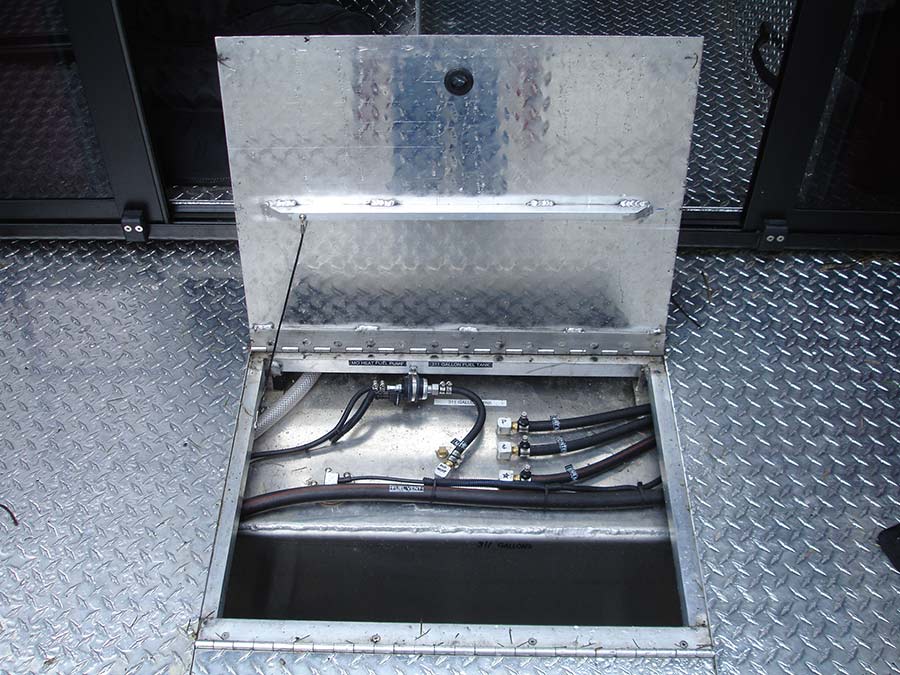

storage everywhere

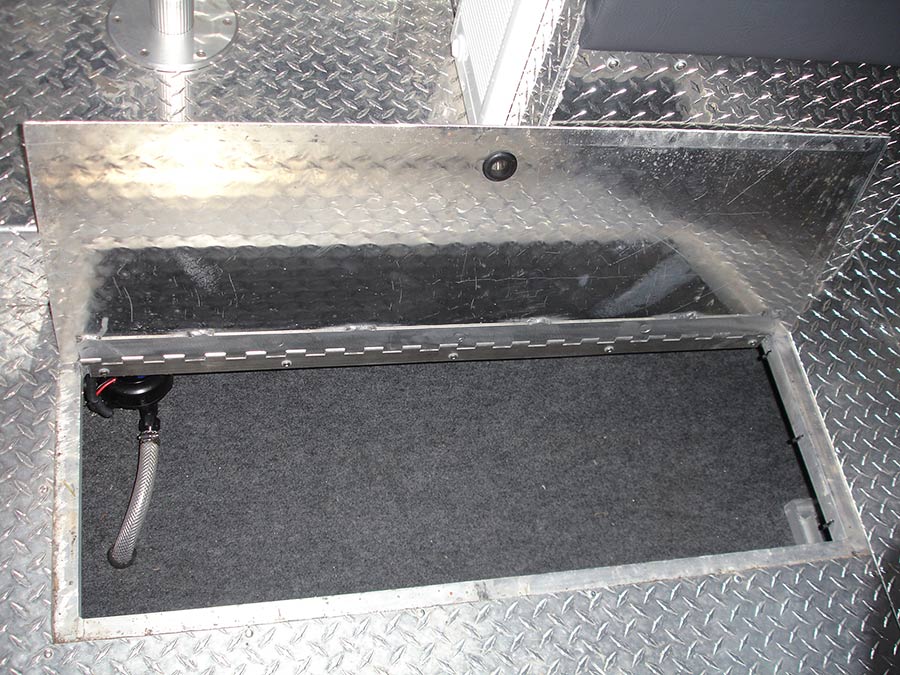

including floor lockers
|

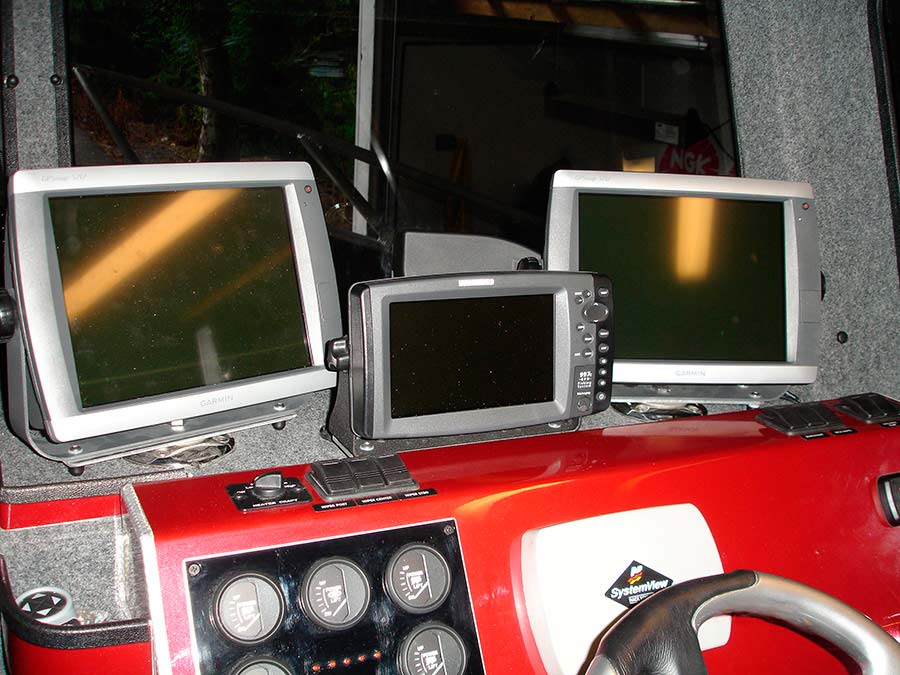

pre rigged for Garmin
electronics radar/gps/weather/sonar/vhf large flat screen monitor mount
|

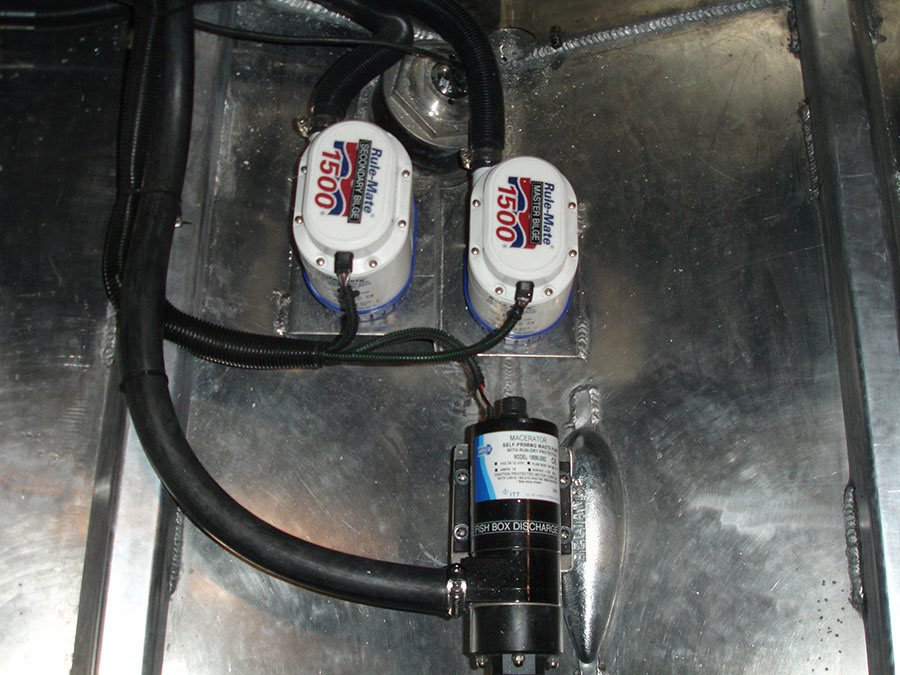

full under deck fish
holds with machator pump
|
311 gal fuel tank
|
2 - 1100 gpm auto
bilge pumps
|

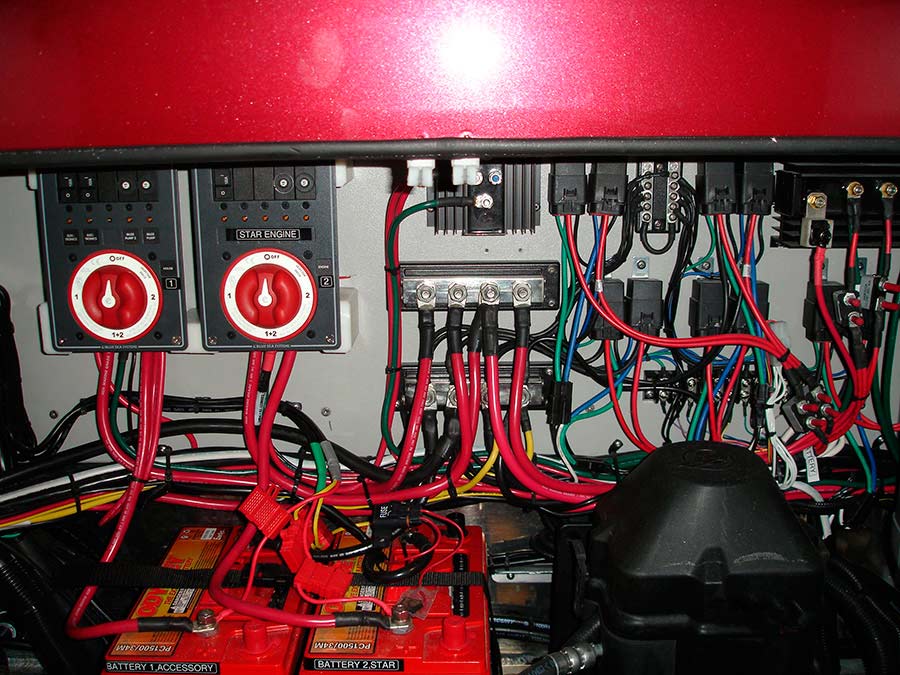

4 Odyssey 1500
batteries on blue sea switching stations with on board 4 bank charger
|
built into gunwale
rear control station
|

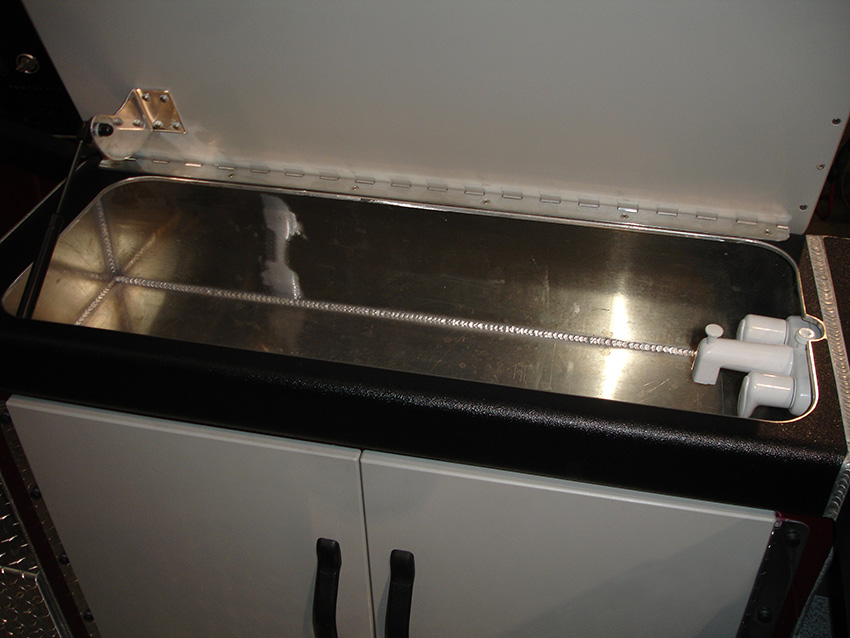

2 in transom sinks /
bait well or fish boxes with wash down systems fresh water and sea water
|
walk through transom
door with extra wide swim deck area
|
|

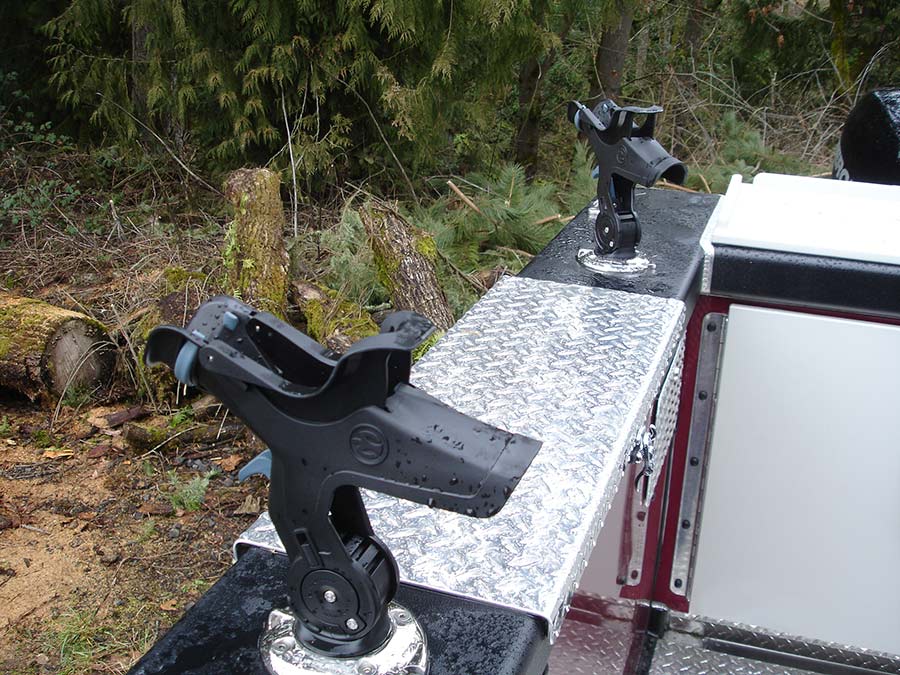

Burnewiin stainless
rod holder system
|

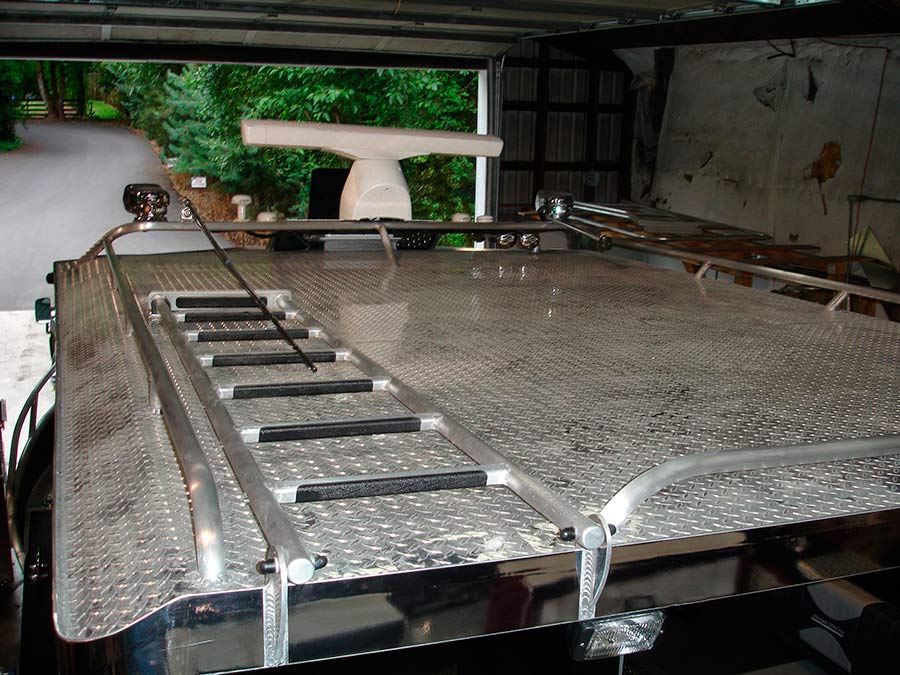

extra reinforced
wheel house roof with fold down ladder access
|

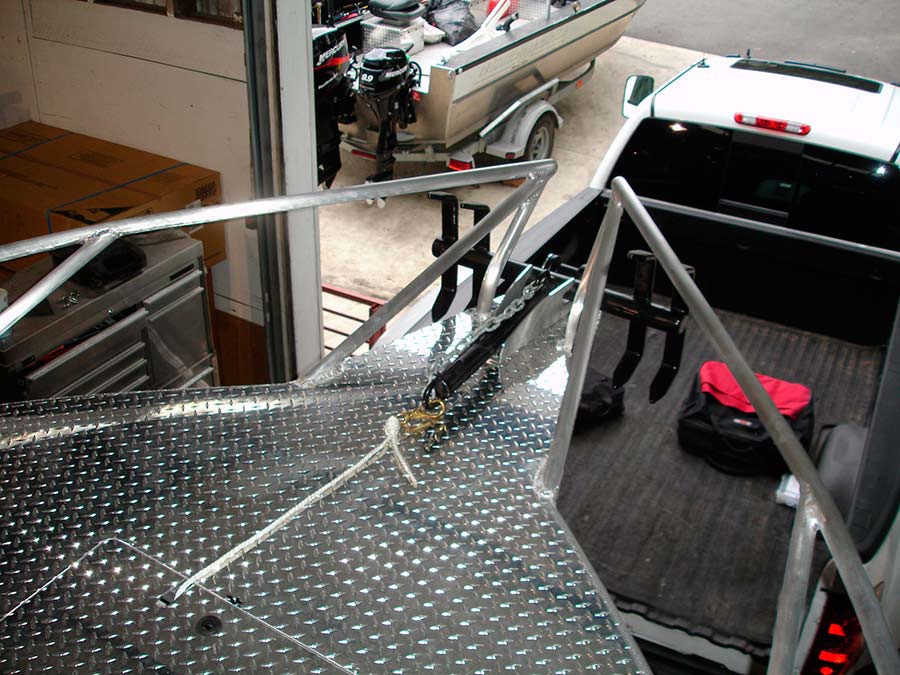

bow pulpit with extra
large anchor line storage and Promotion 45 lb anchor system with puller
|

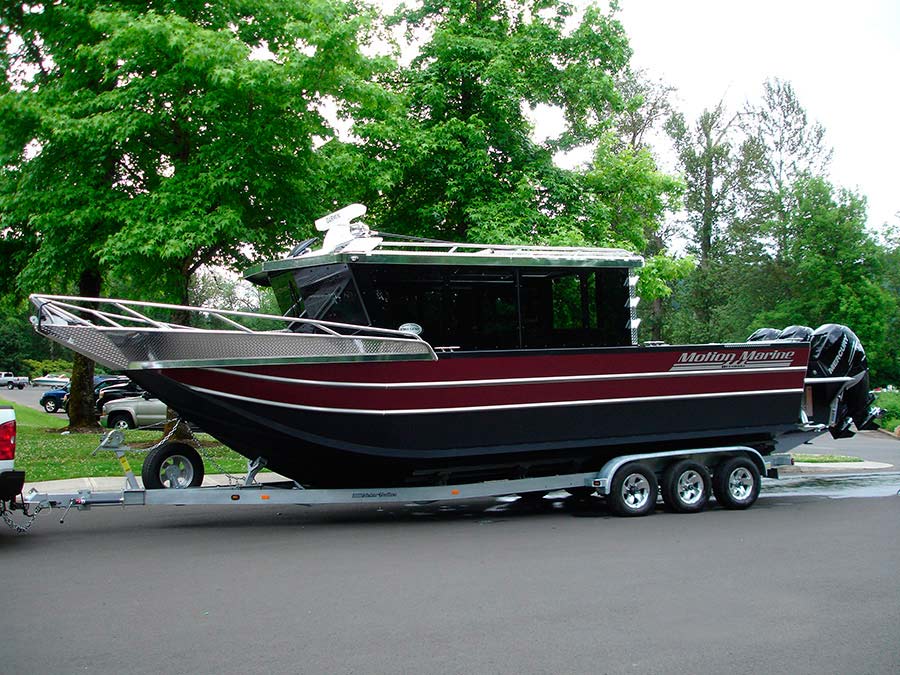

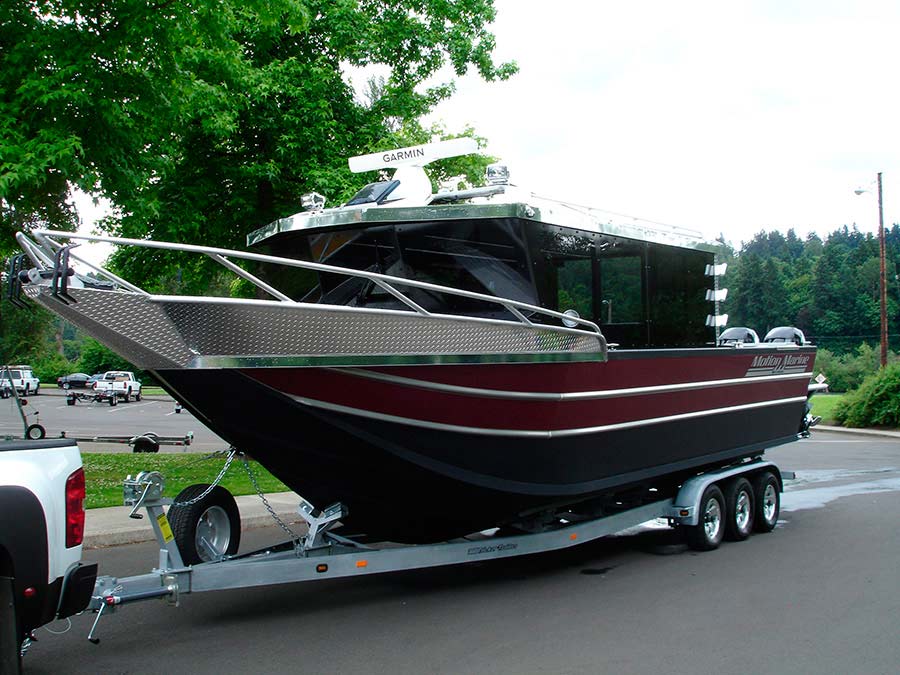

galvanized triple
axle custom built Tricker Trailer with all wheel electric over
hydraulic Disc brakes and spare tire
|
|
|
